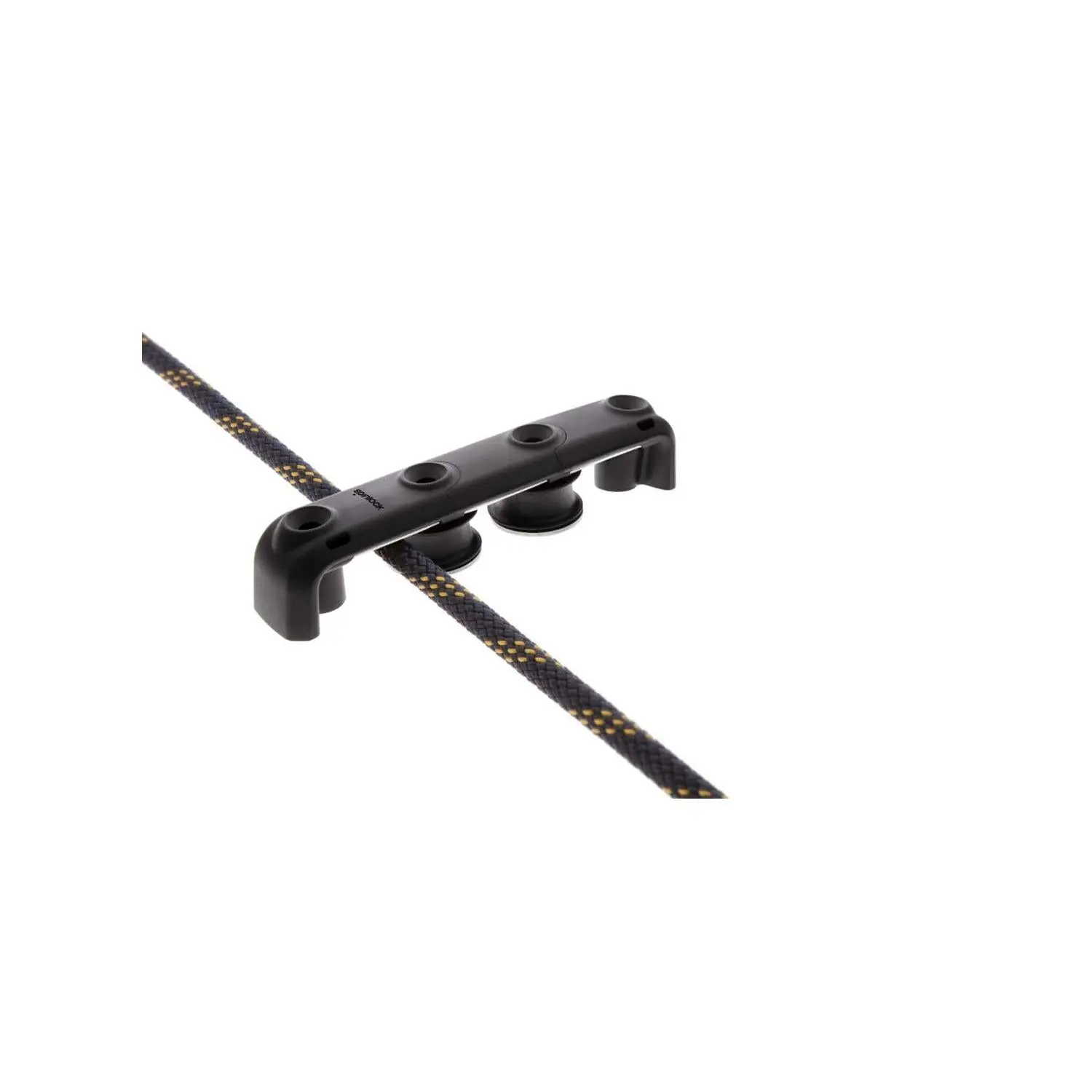

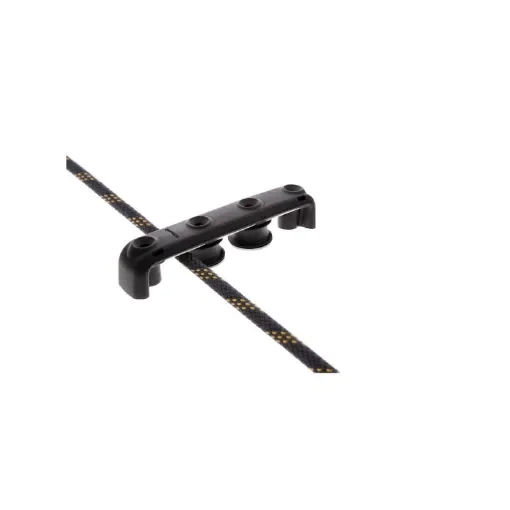

The Spinlock T25 2-Sheave Deck Organizer is designed to enhance the efficiency of line management on small boats. Its compact and lightweight design ensures minimal windage and a reduced deck footprint, making it ideal for vessels up to 28 feet in length. The organizer features two 25mm composite sheaves, suitable for lines up to 10mm in diameter, and offers both symmetric and asymmetric configurations to accommodate various rigging setups.
- Modular Design: The T25 system is modular, allowing for configurations ranging from 2 to 6 sheaves, adaptable to different line-handling requirements.
- Fiber-Reinforced Construction: Constructed with fiber-reinforced materials, the organizer offers strength and durability while maintaining a lightweight profile.
- Stainless Steel 'Wear' Strip: Equipped with a stainless steel wear strip, it prevents local rope damage, extending the lifespan of your lines.
- Curved Design: The organizer's curved design conforms to the deck's shape, facilitating straightforward installation and reducing bulk.
- Double Stacking Capability: For a cost-effective stacked line solution, the T25 can be double-stacked with the BE10/2 or BE10/3 organizers.
Technical Specifications:
- Sheave Diameter/Type: 25mm (1 inch) composite
- Safe Working Load (SWL) per Sheave: 400kg (880lbs)
- Total SWL per Unit: Number of sheaves x 200kg (440lbs)
- Maximum Line Diameter: 10mm (3/8 inch)
- Weight: 64g (2.2oz) for the 2-sheave organizer; 20g (0.7oz) per additional sheave
- Fasteners: 2x M5 (3/16 inch) countersunk head screws (not supplied)
Materials:
- Sheaves: Composite material for strength and lightweight performance
- Wear Strip: Stainless steel to prevent line abrasion
- Body: Fiber-reinforced composite for enhanced durability
Dimensions:
- Length: Approximately 120mm (4.7 inches)
- Width: Approximately 40mm (1.6 inches)
- Height: Approximately 30mm (1.2 inches)
Compatibility Information:
The T25 2-Sheave Deck Organizer is compatible with lines up to 10mm in diameter and is suitable for small boats up to 28 feet in length. It can be configured in both symmetric and asymmetric setups, providing flexibility for various rigging configurations. For a stacked line solution, it can be combined with the BE10/2 or BE10/3 organizers.
