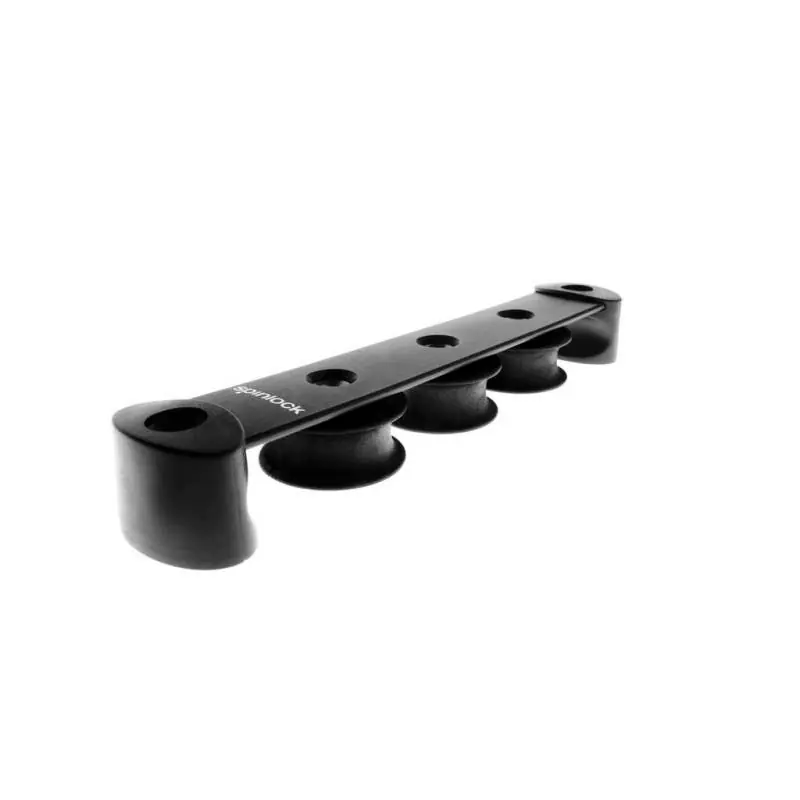

Key Features:
- Efficient Rope Management: Designed to lead multiple lines back from the mast to banks of powerclutches, optimizing rope organization and reducing deck clutter.
- Reduced Friction: The efficient bearing surface minimizes winch effort and extends halyard life.
- Asymmetric Design: The asymmetric version reduces deck footprint and saves weight, making it ideal for space-constrained areas.
- Stackable Configuration: Can be stacked to add extra capacity or fit limited deck areas.
- Vari-Camber Feature: Designed to follow the curve of the deck when fitted, ensuring a seamless integration.
Technical Specifications:
- Sheave Diameter: 38 mm (1.5 inches) composite material
- Safe Working Load (SWL) per Sheave: 600 kg (1320 lbs)
- Total SWL per Unit: Number of sheaves × 300 kg (660 lbs)
- Maximum Rope Diameter: 12 mm (1/2 inch)
- Weight: 115 g (4.0 oz) for a 2-sheave organizer; 30 g (1.1 oz) per additional sheave
- Fasteners: 2 x M6 (1/4 inch) countersunk screws (not supplied)
Materials:
- Sheaves: Composite material for durability and reduced weight
- Bearings: Efficient bearing surface to reduce friction
Dimensions:
- Length: Approximately 6.25 inches (15.88 cm)
- Width: Varies based on the number of sheaves
- Height: Approximately 2.5 inches (6.35 cm)
Compatibility Information:
- Rope Compatibility: Suitable for ropes up to 12 mm (1/2 inch) in diameter
- Mounting: Requires 2 x M6 (1/4 inch) countersunk screws for installation (not included)
Additional Details:
- Asymmetric Design: Reduces deck footprint and saves weight
- Stackable Configuration: Can be stacked to add extra capacity or fit limited deck areas
- Vari-Camber Feature: Designed to follow the curve of the deck when fitted
