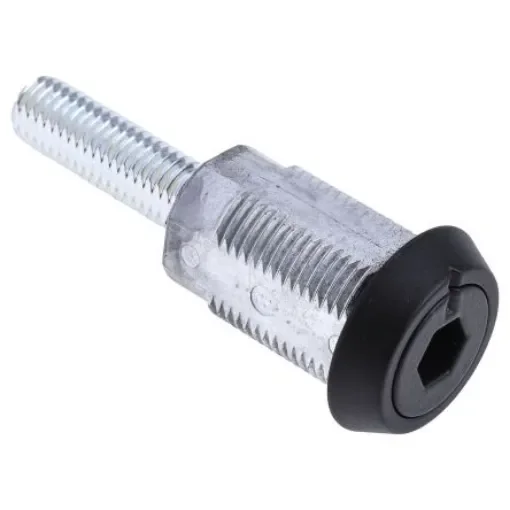

Southco Steel Compression Latch, 47.5 x 29 x 64mm - E3-16-15

Material = Steel
Latch Type = Compression Latch
Dimensions = 47.5 x 29 x 64mm
Length = 47.5mm
Width = 29.0mm

Southco Hexagon Recess Head Compression LatchThe Southco Vice action series hexagon recess head compression latch is cylindrical in shape. The latch has a raised trigger and a push to close mechanism. It applies consistent pressure to gasketing with one-half turn is all that is required to latch the door and pull it uptight. It has a height of 47.5mm, a width of 29mm and depth of 64mm body.Features and BenefitsHead style is 8 (.32) Hex recess Grip range is 11.4mm to 27.2mm deep offset cam, forward and 66.3mm to 76.2mm deep offset cam, forward 450N static load capacity Consistent pre-set compression Easy grip adjustment Tool operated for security Housing material is steel with black powder coatedCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007 IP65 rating NEMA 4
