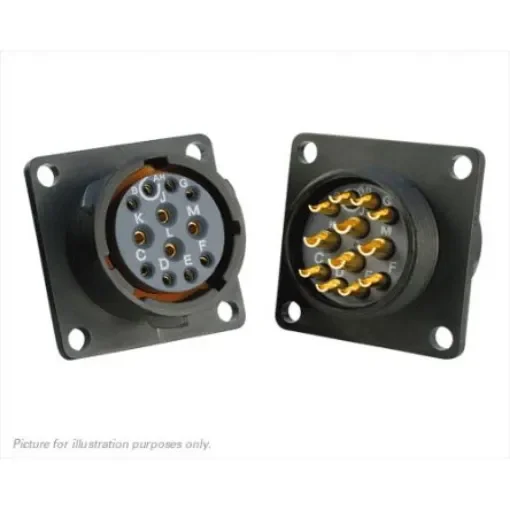

Souriau Sunbank by Eaton, UTS 12 Way Flange Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size - UTS014E12S

Number of Contacts = 12
Gender = Female
Contact Gender = Female
Current Rating = 13 (Size 16) A, 7.5 (Size 20) A
Voltage Rating = 600 V
Shell Size = 14
Mounting Type = Flange Mount
Military Standard = MIL-DTL-26482
Termination Method = Solder
IP Rating = IP68, IP69K
Mating Type = Bayonet
Connector Size = Standard
Body Orientation = Straight
Housing Material = Thermoplastic
Minimum Operating Temperature = -40°C

Souriau UTS Series Plugs ; Receptacles. The UTS series of receptacles from Souriau offers a wide range of quality, box mounted and cable-mounted plugs to cable mounted inline and PCB-mounted receptacles. The series can accommodate wires in a host of ways. These include crimp, solder and screw termination and all receptacles have a robust design to ensure high performance in harsh climatic conditions. All models are highly reliable and excellent quality. Features ; Benefits. • Robust design ensures high performance in a wide range of climatic conditions • Accommodates wires in a host of ways including; crimp, solder and screw termination • Plug ; receptacle durability is excellent
