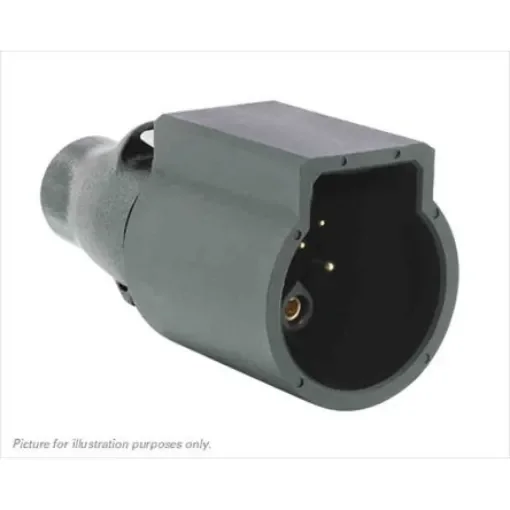

Souriau Sunbank by Eaton Circular Connector, 6 Contacts, In-line, Socket, Male, IP68, IP69K, UTL Series - UTL1102G1W3PCDMX

Durable IP68 circular connector ideal for underwater applications and high-pressure cleaning.
Manufacturer part number: UTL1102G1W3PCDMX
€61.85
i h
Ships to: France, Monaco
For shipping outside these regions, please contact customer support.
Souriau UTL Series Waterproof Connectors. These UTL Series connectors are the latest edition to the Souriau Trim Trio range. The UTL range of connectors offer full IP68/69K rating, UV resistance and UL/IEC compliance. Plastic bodied circular connectors featuring a stainless latch and a key hole coupling system to enable blind mating with an audible click. These durable UTL connectors, being fully waterproof, can be used whilst underwater and be cleaned with a high pressure water hose. Features and Benefits. • Thermoplastic housing with stainless latch • IP68/69K rated • UL 94 5VA flammability rating • Salt spray resistance up to 1000 hours • Fluid resistance, gas and oil, mineral oil, acid bath • Up to 1000 mating cycles • Blind mating with audible click • Rated current 16A. Application Information. Souriau UTL series connectors are a versatile range of circular connectors suitable for many applications such as building automation and control systems, energy and power, telecoms and medical amongst many others.
