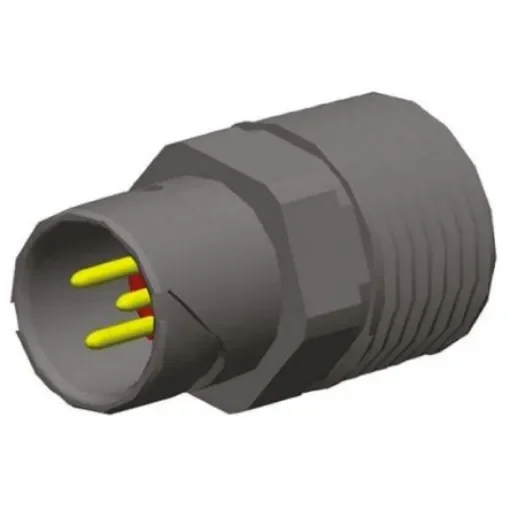

Souriau Sunbank by Eaton Circular Connector, 3 Contacts, Cable Mount, Plug, Male, IP68, IPX6, 8N45 Series - 8N45S111105NC

Souriau 8N45S NC Series Nuclear Plugs and Receptacle Connectors. Souriau 8N45S NC series are non-safety classified connectors for EPR reactors, suited for applications within the nuclear industry that demand a robust and hardwearing connector with high seismic and vibration resistance, such as instrumentation, sensor and test probes. The 8N45S NC series plug connectors feature a quick disconnect 1/4 turn bayonet coupling mechanism a sealing gland and cable clamp built in and an integrated 360 degree ground termination mechanism which is compliant with EPR wiring specifications, the square flange receptacle connectors come with a gasket attached. Current rating 11 Amps max. Peak current 50A, 30ms Test voltage rating 2000 Vrms Insulation resistance = 5000 MO under 500 Vdc Contact resistance 5 MO Operating Basis Earthquake (OBE): 3g ZPA Safe Shutdown Earthquake (SSE): 6g ZPA Ambient humidity: 75% max. Steam test: 100°C / 1bar / 100% HR / 100h (with Raychem sheath) Cumulated radiation: 250 kGy (25 MRads) / 70°C Dry heat test: 40°C / 93% HR / 504h Salt spray resistance: 168h 500 mating cycles IPX6 and IP68 rated
