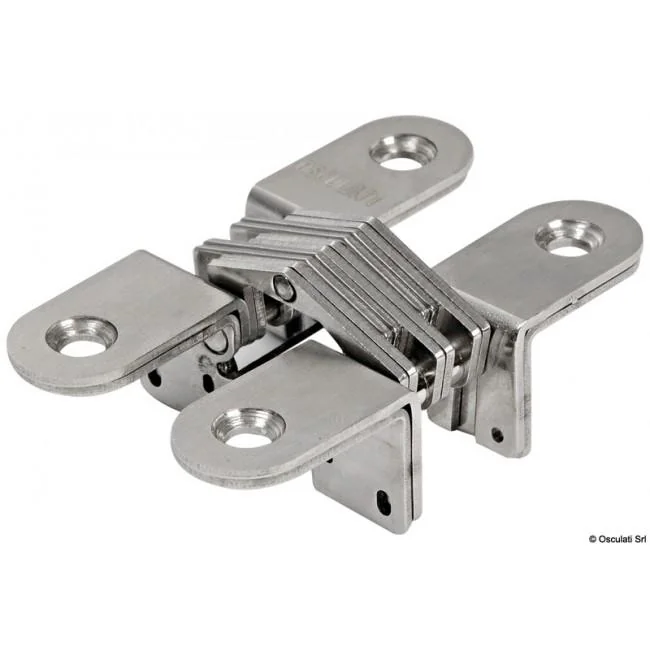

The SOSS Invisible Hinge Model #416SS is a high-quality, stainless steel hinge designed for wood or metal applications with a minimum material thickness of 1-3/8 inches (34.93 mm). This full-size door hinge offers a superior appearance and durability, providing a flush fit, compact size, smooth operation, and corrosion resistance. It allows doors to open a full 180 degrees and operates as a single-action hinge.
- Flush Fit: Provides a seamless appearance when the door is closed.
- Compact Size: Ideal for applications where space is limited.
- Smooth Operation: Ensures effortless door movement.
- Corrosion Resistance: Made of complete 316 stainless steel for enhanced durability.
- 180° Opening: Allows the door to swing fully open.
- Single Action: Operates with a single motion for ease of use.
Technical Specifications:
- Weight Capacity: Not specified
- Material: 316 Stainless Steel
- Fire Rating: Up to 3 hours for hollow metal, sheet metal, tin clad, and steel composite swinging type fire doors and frames; Up to 20 minutes for wood core doors and frames; Up to 90 minutes for wood/plastic composite doors and frames constructed with Georgia Pacific FS 1 or FS 2 banding.
Dimensions:
- A: 1 inch (25.40 mm)
- B: 47/64 inch (18.65 mm)
- C: 4-5/8 inches (117.48 mm)
- D: 15/64 inch (5.95 mm)
- E: 1/4 inch (6.35 mm)
- F: 2-39/64 inches (66.28 mm)
- G: 1/16 inch (1.59 mm)
- H: 1-15/32 inches (37.31 mm)
- I: 15/32 inch (11.91 mm)
Compatibility Information: Suitable for doors with a minimum material thickness of 1-3/8 inches (34.93 mm). Compatible with wood or metal applications. Fire-rated for specific door types and constructions as mentioned above.
