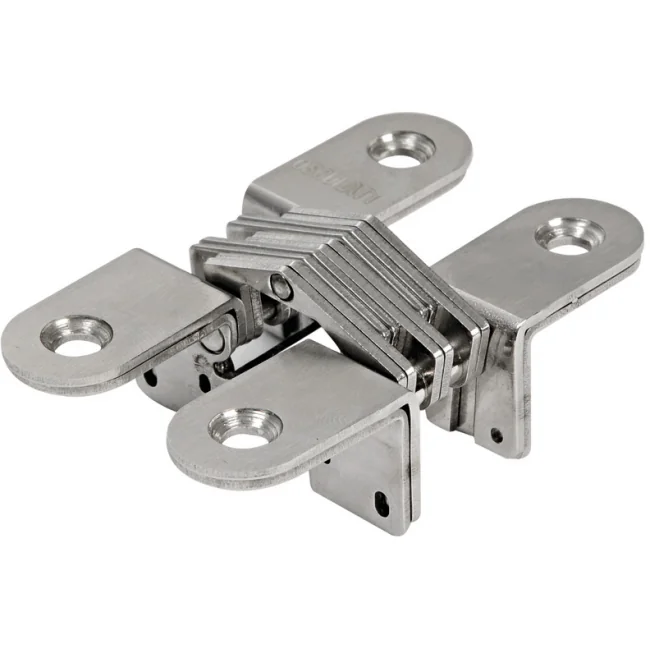

The SOSS® Invisible Hinge Model #418SS is designed for concealed doors that open up to 180°, offering a sleek and unobtrusive appearance. Crafted entirely from 316 stainless steel, this hinge ensures exceptional durability and corrosion resistance, making it suitable for both wood and metal applications. Its satin finish provides a modern aesthetic, seamlessly integrating with various door styles.
- Concealed Design: Provides a clean, uninterrupted door surface by hiding the hinge within the door and frame.
- 180° Opening: Allows the door to open fully, facilitating easy access and movement.
- Durable Construction: Made of complete 316 stainless steel for enhanced strength and resistance to corrosion.
- Satin Finish: Offers a contemporary look that complements various interior designs.
- Fire Rating: Underwriters Laboratories labeled, suitable for fire-rated doors up to 3 hours.
Technical Specifications:
- Material: 316 Stainless Steel
- Minimum Door Thickness: 44.45mm (1-3/4 inches)
- Fire Rating: Up to 3 hours for metal doors; up to 20 minutes for wood core doors
- Weight Capacity: Approximately 2.15 lbs (0.98 kg)
- Screws Included: Wood and machine screws

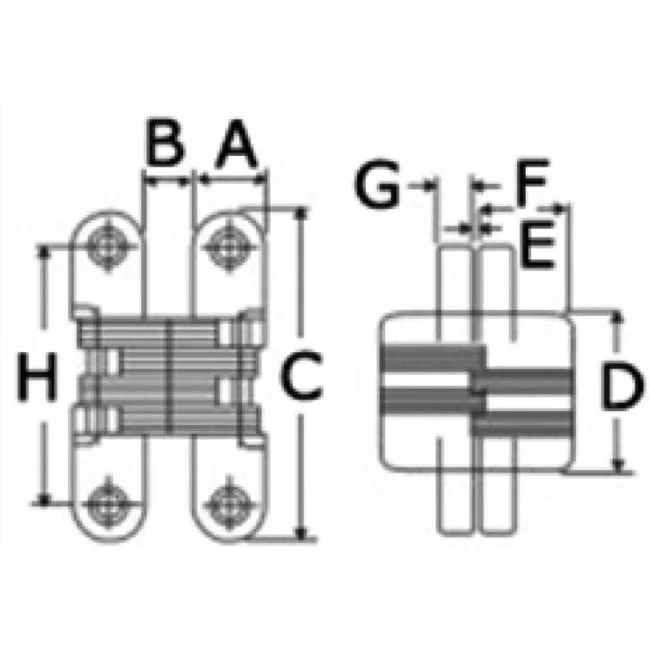

Dimensions:
- A: 28.58mm
- B: 21.83mm
- C: 117.08mm
- D: 9.13mm
- E: 6.35mm
- F: 61.91mm
- G: 1.59mm
- H: 41.67mm
- I: 10.32mm
Compatibility Information: This hinge is compatible with doors made of wood or metal with a minimum thickness of 44.45mm (1-3/4 inches). It is suitable for both interior and exterior applications, including full-sized entry doors. The hinge is also appropriate for use in fire-rated doors, with ratings up to 3 hours for metal doors and up to 20 minutes for wood core doors. Additionally, it can be used on wood/plastic composite doors and frames constructed with Georgia Pacific FS 1 or FS 2 banding for a rating up to and including 90 minutes.
