Key Features:

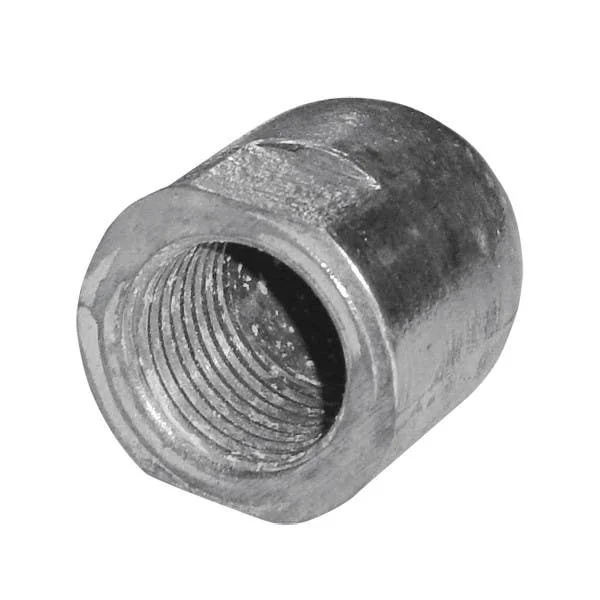

- Designed to protect propeller shafts from corrosion by serving as a sacrificial anode.
- Screw-on installation for easy attachment to the shaft end.
- Available in two sizes: 22/25 mm and 28/35 mm, accommodating different shaft diameters.
Technical Specifications:
- Material: Zinc, known for its effectiveness in saltwater environments.
- Application: Specifically designed for propeller shafts to prevent galvanic corrosion.
Dimensions:
- 22/25 mm Size:
External Diameter: 25 mm
Internal Diameter: 22 mm
Height: Approximately 50 mm
- 28/35 mm Size:
External Diameter: 35 mm
Internal Diameter: 28 mm
Height: Approximately 50 mm
Compatibility Information:
- Compatible with propeller shafts having external diameters of 22 mm, 25 mm, 28 mm, or 35 mm.
- Ensure the shaft end is clean and free from debris before installation for optimal contact.
Additional Details:
- Installation should be performed in direct contact with the metal it protects; avoid painting around the anode or the anode itself.
- Regular inspection is recommended, replacing the anode when it has deteriorated by 70-80% to maintain effective protection.
