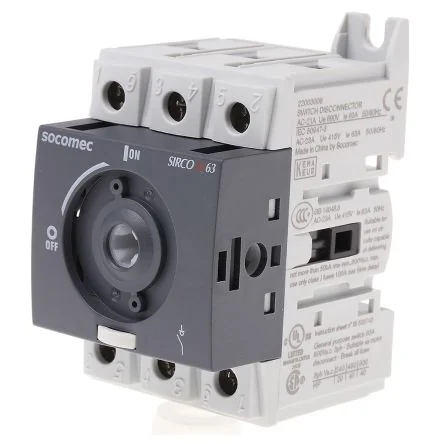

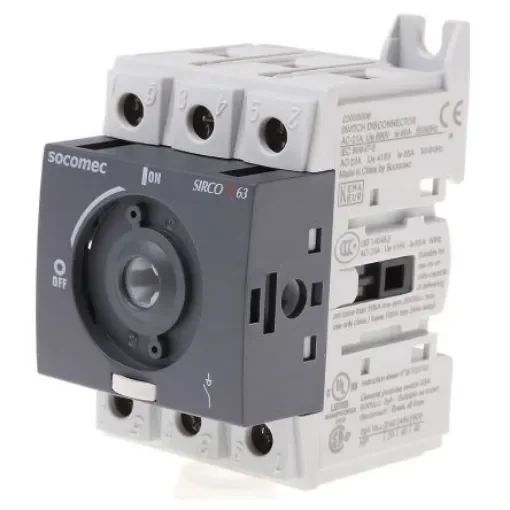

Socomec 3P Pole Isolator Switch - 63A Maximum Current, 30kW Power Rating, IP20 - 2200 3006

Number of Poles = 3P
Maximum Current = 63A
IP Rating = IP20
Power Rating = 30kW
Voltage Rating = 690V ac
Electrical Phase = 3
Handle Colour = Blue, Red
Normal State Configuration = NO/3NC (Auxiliary)
Switch Rating = 63A
Length = 76mm
Width = 52.5mm
Depth = 64mm
Minimum Operating Temperature = -25°C

Non-Fusible Disconnect Switches SIRCO M. SIRCO M is a range of multipolar, modular and manually operated switch-disconnectors (or load break switches). Available in 3 or 4 poles and from 16 to 125A, they make and break under load conditions and provide safety isolation for any low voltage circuit, particularly for machine control circuits. Through the use of accessories, SIRCO M can be transformed into multipolar load break or 3/4 pole changeover switches. SIRCO M changeover switches provide on load changeover switching between two sources or two low voltage power circuits, as well as their safety isolation. - Comply with international standards IEC 60947-3, UL508 and UL98. - Double break per pole. - Mounting options: DIN rail, panel or modular panel with 45 mm front cut out. - IP20 devices and accessories. - Severe utilisation categories (AC-22 and AC-23). - Positive break indication. - Contact point technology. - Product can be mounted directly on the door or panel side, with a specific "Door mounting kit" accessory.
