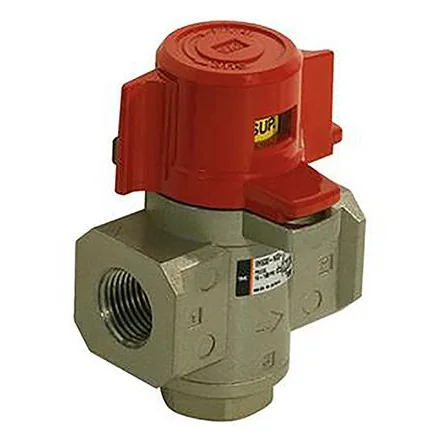

SMC VHS Pressure Relief Valve NPT 1/4, VHS20-N02A-Z

Maximum Operating Pressure = 1 (Operating) MPa, 1.5 (Proof) MPa
Minimum Operating Pressure = 0.1MPa
Body Material = Die Cast Zinc
Manufacturer Series = VHS
Dimensions = 45 (Dia.) x 59 (Height)mm
Inlet Port Gender = Female
Minimum Operating Temperature = -5°C
Maximum Operating Temperature = +60°C

Series VHS Hand Valves. The VHS series is a safety manual switching valve for preventing accidents that could be caused by the residual pressure while performing maintenance service on a pneumatic system. The valve is easy to operate and the direction of air flow can be verified by the orientation of the handle. The valve is compact yet provides a large capacity. Various port sizes available Embedded pressure gauge Rc, NPT and G type threads
