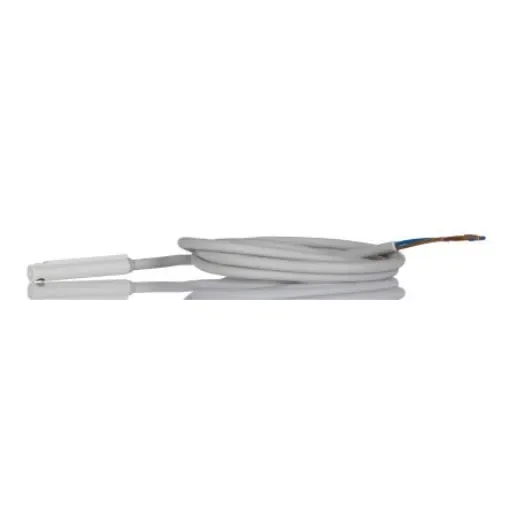

SMC Reed Pneumatic Position Detector, IP67, 24 V dc, 100V ac, D-A9, with LED indicator - D-A93

Type = Reed
Supply Voltage = 24 V dc, 100V ac
Manufacturer Series = D-A9
LED Indicator = Yes
IP Rating = IP67
Minimum Operating Temperature = -10°C
Maximum Operating Temperature = +60°C

SMC Reed Pneumatic Position DetectorThe SMC D-A9 series 24VDC direct mount pneumatic reed position detector utilizes a magnetic sensor for pneumatic actuation. It has built-in indicator lights and set screws. This detector has a 0.5m long lead wire that weighs 30gm.Features and BenefitsDurable vinyl sheath cable that is an oval shape for added flexibility Insulation resistance of 50Mohm Load current ranging from 5mA to 40mA Operating temperature rating ranging between -10°C and 60°CApplicationsAutomotive/ heavy vehicle Electronics Food/beverage Forestry/paper products Material handling Packaging Petroleum/chemical Resource Steel TextileThe SMC D-A9 series 24VDC direct mount pneumatic reed position detector utilizes a magnetic sensor for pneumatic actuation. It has built-in indicator lights and set screws. This detector has a 0.5m long lead wire that weighs 30gm.Features and BenefitsDurable vinyl sheath cable that is an oval shape for added flexibility Insulation resistance of 50Mohm Load current ranging from 5mA to 40mA Operating temperature rating ranging between -10°C and 60°CApplicationsAutomotive/ heavy vehicle Electronics Food/beverage Forestry/paper products Material handling Packaging Petroleum/chemical Resource Steel TextileCertificationsIEC529 IP67 rated JISC0920
