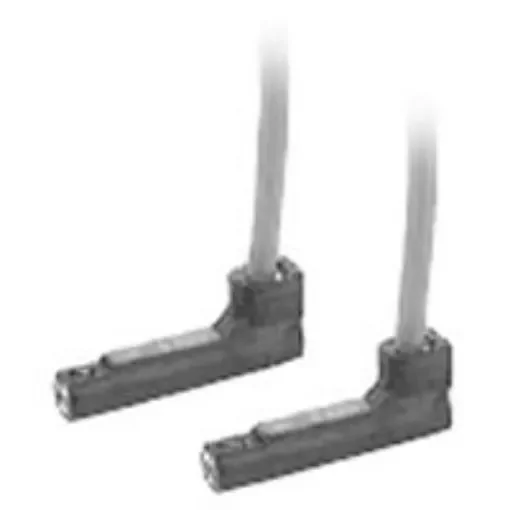

SMC Reed Pneumatic Cylinder & Actuator Switch, D-A9 Series, 24 V dc, 100 V ac, with LED indicator - D-A93VL
Reliable SMC Reed Pneumatic Cylinder Switch with LED indicator for efficient actuator control.
Manufacturer part number: D-A93VL
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Manufacturer Series = D-A9
Type = Reed
Voltage Rating = 24 V dc, 100 V ac
LED Indicator = Yes
Voltage Drop = =2.7V
IP Rating = IP67
Maximum Operating Temperature = +60°C
Minimum Operating Temperature = -10°C
Enclosure: IEC529 criteria IP67, JISC0920. D-A9 Series. The DA-9 series reed switches utilise a magnetic sensor for pneumatic actuators. They come with built in indicator lights and set screws. For extra versatility they are available in both two and three wire options in both in-line and vertical entry configurations. Possible Applications: Automotive/Heavy Vehicle Food/Beverage Forestry/Paper Products Material Handling Packaging Petroleum/Chemical Steel Textile Electronics Life Sciences Resource. Voltage Rating: 5Vdc or 24Vdc Load current: 50mA or less Operating time: 1.2ms or less Durable vinyl sheath cable which is oval shape for added flexibility Insulation resistance of 50MO or more at 500 Vdc Ambient temperature rating: -10 to 60 °C
