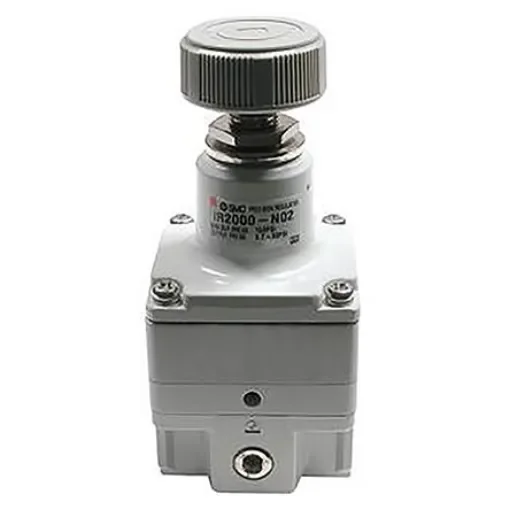

SMC R 1/4 Female Pneumatic Regulator -, 1/4, 1MPa max. input - IR2010-02BG

Port Connection = R 1/4 Female
Maximum Input Pressure = 1MPa
Manufacturer Series = IR2000
Pressure Gauge Port Size = R 1/8
Port Connection Thread Size = 1/4
Pressure Gauge Port Thread Size = 1/8in
Maximum Flow Rate = =4.4L/min
Integral Check Valve = Yes
Port Connection Thread Standard = R
Minimum Operating Temperature = -5°C
Maximum Operating Temperature = +60°C
Pressure Gauge Port Thread Standard = R

(Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline. See separate product range for mounting brackets and accessories. Precision IR Series. Air requirements; Dry, filtered to 0.3µm Precise setting accuracy ±0.2% of full span Repeatability ±0.5% of full span Temperature range -5°C to +60°C High relief flow capacity for high balance performance Suitable for standalone use or integration into an SMC modular FRL assembly ( AC3000 series ) Weight 300g Available with / without mounting brackets
