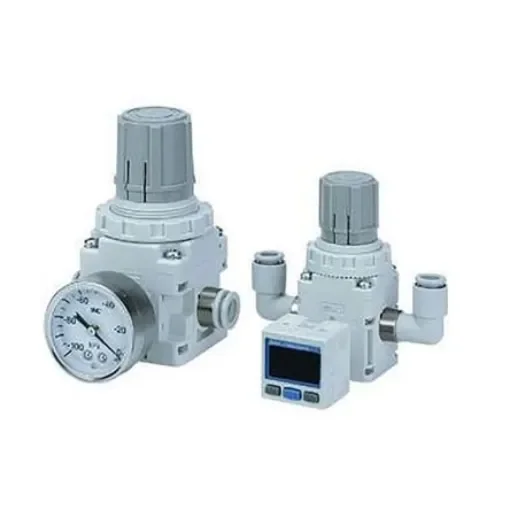

SMC Pneumatic Regulator - -100kPa to -1.3kPa, 10mm, 100kPa max. input - IRV20-C10

Maximum Outlet Pressure = -1.3kPa
Minimum Outlet Pressure = -100kPa
Maximum Input Pressure = 100kPa
Manufacturer Series = IRV20
Pressure Gauge Port Size = Rc 1/8
Port Connection Thread Size = 10mm
Pressure Gauge Port Thread Size = 1/8in
Maximum Flow Rate = 240L/min
Port Connection Thread Standard = Metric
Minimum Operating Temperature = +5°C
Maximum Operating Temperature = +60°C
Overall Length = 72mm

Standarized single piping Maximum flow rate is now more than twice the flow rate of the existing model: 140 l/min (ANR), 240 l/min (ANR) 20% Mass reduction Integrated one-touch fitting is now standard Easy to attach/detach the pressure gauge or digital pressure switch due to attachment by clip 2 possible mounting orientations for the pressure gauge or digital pressure switch Multiple mounting angles Expanding mounting variations
