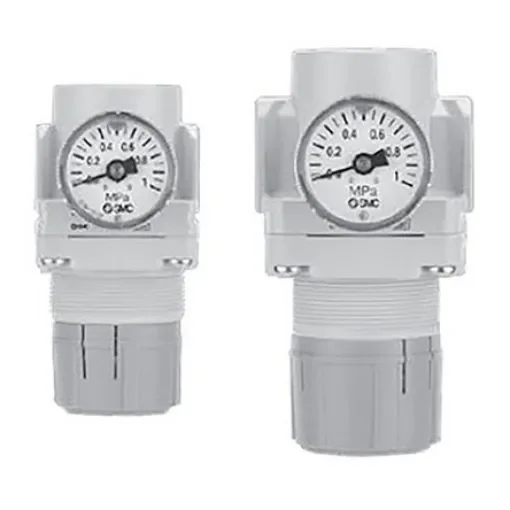

SMC NPT 1/4 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1/4in, 1MPa max. input - AR20-N02BG-Z-A

Port Connection = NPT 1/4
Maximum Outlet Pressure = 0.85MPa
Minimum Outlet Pressure = 0.05MPa
Maximum Input Pressure = 1MPa
Manufacturer Series = AR
Pressure Gauge Port Size = NPT 1/8
Port Connection Thread Size = 1/4in
Pressure Gauge Port Thread Size = 1/8in
Maximum Flow Rate = 0.1L/min
Integral Check Valve = Without Check Valve
Port Connection Thread Standard = NPT
Minimum Operating Temperature = -5°C
Maximum Operating Temperature = +60°C
Pressure Gauge Port Thread Standard = NPT

Modular Air Regulator AR20 - AR40. Modular air regulators from SMC. The modular air regulators in the AR series are now more efficient saving you energy. The AR series has a modular design with improved installation using a new bracket and spacer combination.The modular design allows connection with other parts in the AC FRL range allowing you to select which components are most suitable for your needs. Resin body will not rust Different pressure settings available to meet different application needs Modular design
