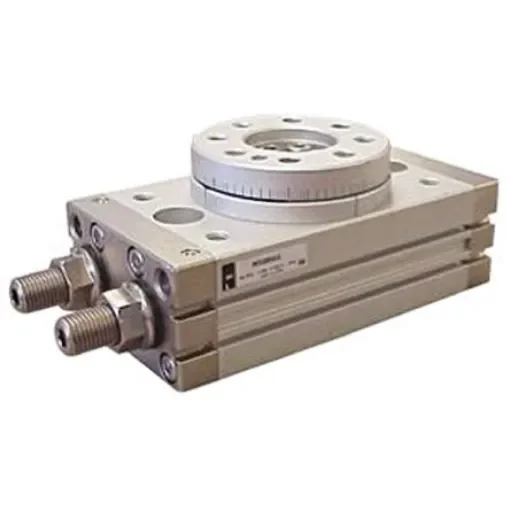

SMC -, MSQ Series 1 MPa Pneumatic Rotary Actuator, 190° Rotary Angle, 32mm Bore - MSQB100A-XF
Efficient pneumatic rotary actuator with 190° rotation for seamless material transfer.
Manufacturer part number: MSQB100A-XF
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Rotary Angle = 190°
Bore = 32mm
Manufacturer Series = -, MSQ
Maximum Operating Pressure = 1 MPa
Cushioning Type = Rubber
Port Connection = G 1/8
SMC MSQ Series Actuator. The MSQ series of compact rotary tables are ideal for material transfer applications. The series incorporate a load bearing and mounting face with a rack-and-pinion style rotary actuator and also have auto switch capability.There are seven sizes are 10, 20, 30, 50, 70, 100 and 200 with rotational adjustments from 0-190 degrees. Operating range of 0-190° by angle adjusting screw Double rack and single pinion construction eliminates backlash Smooth rotary motion, rubber Auto Switch available separately Various cushioning types available
