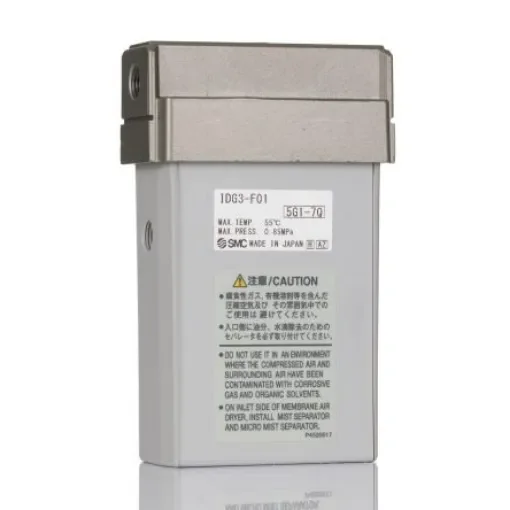

SMC Membrane Compressed Air Dryer -20°C, IDG3-F01

Type = Membrane
Dew Point = -20°C
Inlet Port Size = G 1/8
Manufacturer Series = IDG
Outlet Port Size = G 1/8
Typical Flow Rate = 25 (Outlet) L/min, 6 (Purge) L/min
Maximum Ambient Operating Temperature = +55°C
Minimum Ambient Operating Temperature = -5°C
Minimum Process Operating Temperature = -5°C
Minimum Operating Inlet Pressure = 0.3MPa

Flow rates measured as outlet/purge l/min. IDG Series, Membrane Air Dryer. SMC's Membrane air dryer series IDG is available in a single unit or combination unit style. IDG/M models combine a mist separator and micro mist separator with a single unit. IDG/V models combine a regulator with the IDG/M model. Options available include one-touch fitting exhaust of purge air. If purged air is not exhausted around membrane air dryer, air is exhausted with tubing away from its dryer. A reliable, efficient and an economical alternative to pressure swing and refrigerant dryer technologies. Compact and lightweight No power supply required Discharged air noise reduced with in-built silencer No vibration or heat discharge Modular design for additional filtration Membrane air dryer series Single unit style Various sizes available Port sizes: 1/8" to 1/2"
