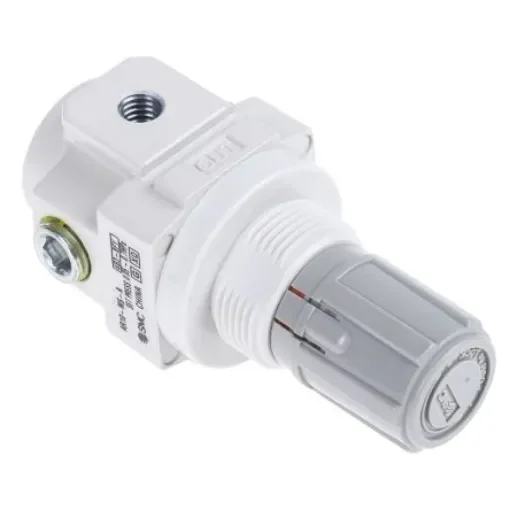

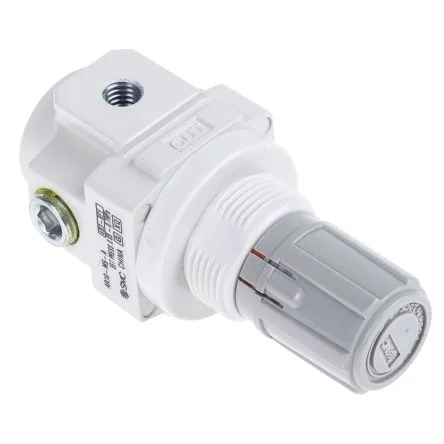

SMC M5 x 0.8 Pneumatic Regulator - 0.05MPa to 0.85MPa, M5, 1MPa max. input - AR10-M5-A

Port Connection = M5 x 0.8
Maximum Outlet Pressure = 0.85MPa
Minimum Outlet Pressure = 0.05MPa
Maximum Input Pressure = 1MPa
Pressure Gauge Port Size = Rc 1/16
Port Connection Thread Size = M5
Pressure Gauge Port Thread Size = 1/16in
Maximum Flow Rate = 20L/min
Integral Check Valve = Without Check Valve
Port Connection Thread Standard = Metric
Minimum Operating Temperature = -5°C
Maximum Operating Temperature = +60°C
Proof Pressure = 1.5MPa

SMC Air Regulator AR10-A. SMC ‘s new AR-A series pneumatic regulators. Available with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa the modular design allows connection to other SMC air preparation equipment. Available with mounting brackets and set nuts or panel mounting. All versions come with a locking setting nut to prevent accidental adjustment.
