SMC G 3/8 Pneumatic Regulator - 0.02MPa to 0.2MPa, 3/8, 1MPa max. input - AR30-F03H-1-B

Port Connection = G 3/8
Maximum Outlet Pressure = 0.2MPa
Minimum Outlet Pressure = 0.02MPa
Maximum Input Pressure = 1MPa
Pressure Gauge Port Size = Rc 1/8
Port Connection Thread Size = 3/8
Pressure Gauge Port Thread Size = 1/8in
Maximum Flow Rate = 20L/min
Integral Check Valve = Without Check Valve
Port Connection Thread Standard = G
Minimum Operating Temperature = -5°C
Maximum Operating Temperature = +60°C
Overall Width = 53mm

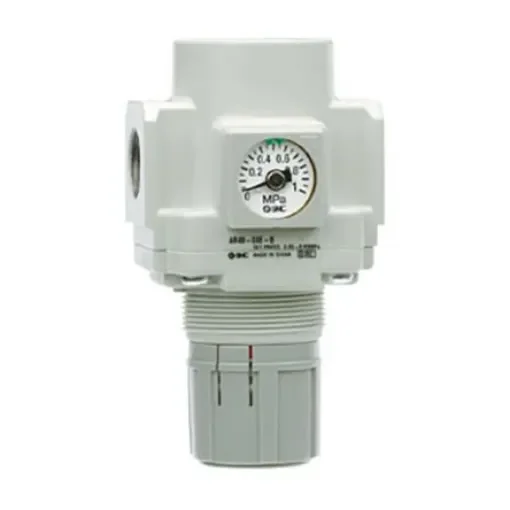

An integral Pressure Gauge is shown on the picture for reference only. It is not supplied as a part of the set and has to be bought separately. SMC Air Regulator AR20-B - AR40-B. SMC ‘s new AR-B series pneumatic regulators with a pressure range setting of 0.05 to 0.7 MPa or 0.02 to 0.2 MPa. The modular design of these pneumatic regulators allows connection to other SMC air preparation equipment and the AR-B series can be mounted using a bracket or panel mounted.
