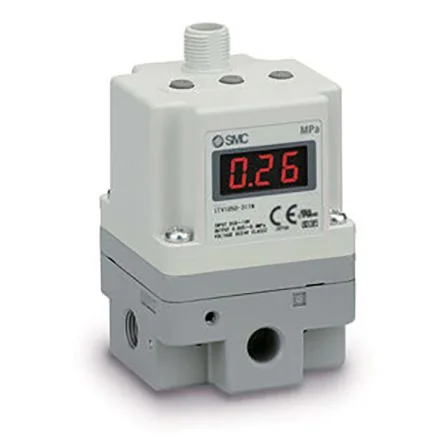

SMC G 1/8 Pneumatic Regulator - 0.005MPa to 0.9MPa, 1/8in, 1MPa max. input - ITV1050-33F1N3
Control air pressure efficiently with the SMC G 1/8 Pneumatic Regulator.
Manufacturer part number: ITV1050-33F1N3
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/8
Maximum Outlet Pressure = 0.9MPa
Minimum Outlet Pressure = 0.005MPa
Maximum Input Pressure = 1MPa
Manufacturer Series = ITV1000
Port Connection Thread Size = 1/8in
Maximum Flow Rate = 200L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +50°C
Overall Dimensions = 50 x 52 x 71mm
Controls air pressure in proportion to an electric signal. Available in MPa, kgf/cm², bar, PSI, and kPa units. Pressure range of 0.005 to 0.9MPa. Available port sizes 1/4 and 1/8. Mounting bracket option
