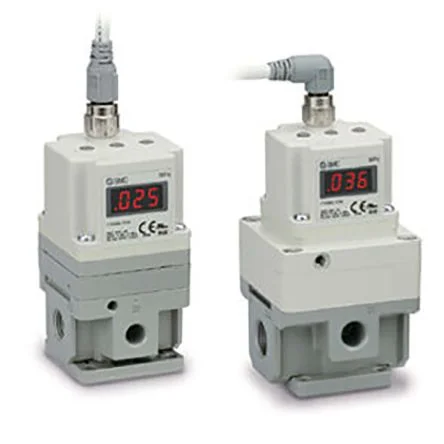

SMC G 1/4 Pneumatic Regulator - 0.005MPa to 0.5MPa, 1/4in, 1MPa max. input - ITV2030-31F2BS3
Control air pressure efficiently with the SMC G 1/4 Pneumatic Regulator.
Manufacturer part number: ITV2030-31F2BS3
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Port Connection = G 1/4
Maximum Outlet Pressure = 0.5MPa
Minimum Outlet Pressure = 0.005MPa
Maximum Input Pressure = 1MPa
Manufacturer Series = ITV2000
Port Connection Thread Size = 1/4in
Maximum Flow Rate = 1500L/min
Port Connection Thread Standard = G
Minimum Operating Temperature = 0°C
Maximum Operating Temperature = +50°C
Overall Dimensions = 50 x 52 x 104mm
Controls air pressure in proportion to an electric signal. Available in MPa, kgf/cm², bar, PSI, and kPa units. Pressure range of 0.005 to 0.9MPa. Available port sizes 1/4 and 1/8. Mounting bracket option
