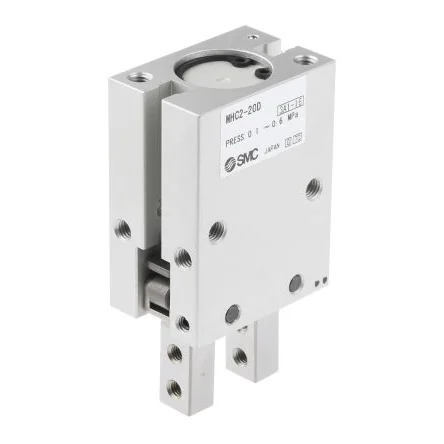

SMC 2 Finger Double Action Pneumatic Gripper, MHC2-20D, Angle Gripping Type
Achieve precise gripping with the SMC 2 Finger Double Action Pneumatic Gripper, ideal for various applications.
Manufacturer part number: MHC2-20D
Number of Fingers = 2
Gripping Type = Angle
Action = Double
Manufacturer Series = MHC2
Maximum Operating Pressure = 0.6 MPa
Port Connection = M5 x 0.8
Weight = 180g
Grippers. Double acting Operating pressure 1 – 6 bar Temperature range 0°C to 60°C Opening angle 30°(open), 10°(closed) Holding moment at 5 bar is 0.1Nm (10mm bore), 0.4Nm (16mm), 0.7Nm (20mm), 1.4Nm (25mm) Repeatability of closing position ±0.01mm Maximum operating frequency 180cpm Lubrication not required
