SMC 1100 L/min G 3/4 Mist Separator, 0.3µm filtration, 0.05MPa to 1 MPa, 1.5 MPa - AFM40-F06-A

Port Connection = G 3/4
Typical Flow = 1100 L/min
Filtration Size = 0.3µm
Manufacturer Series = AFM
Typical Flow Rated At = 0.7MPa
Port Connection Thread Size = 3/4 in
Minimum Operating Temperature = -5°C
Maximum Operating Temperature = +60°C
Maximum Operating Pressure = 1 MPa, 1.5 MPa
Port Connection Thread Standard = G
Minimum Operating Pressure = 0.05MPa

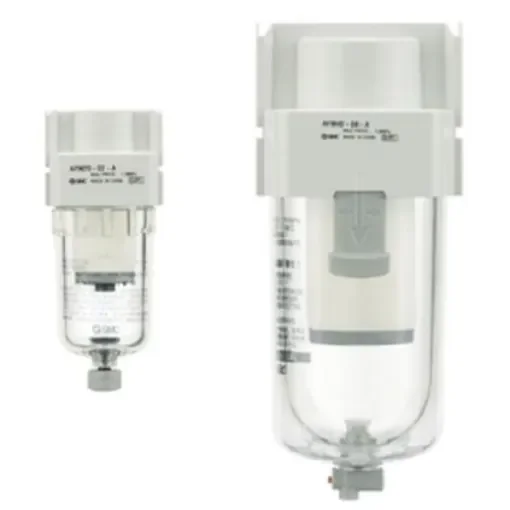

Transparent bowl is for body size 30 and over. Modular Mist Separator AFM20 - AFM40. Modular mist separators from SMC are lightweight and easy to install, minimising the time spent on installation. The bowl guards in the AFM series are clear enabling users to view from any angle. Lightweight Interchangeable for mounting
