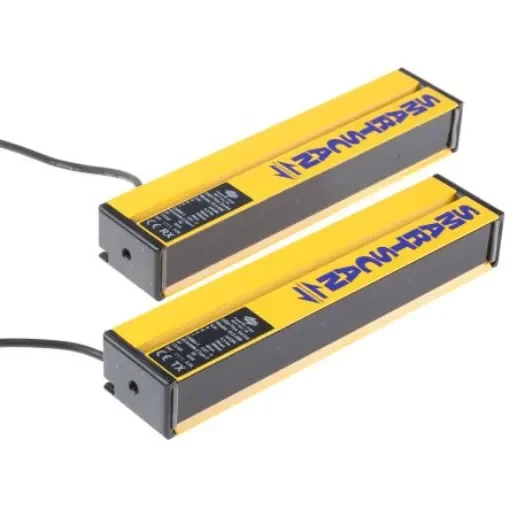

Smartscan 1K3 Series Light Curtain, Sender & Receiver, 6 Beam(s), 30mm Resolution - 1K3-098
Enhance safety in automation with the Smartscan 1K3 Series Light Curtain featuring 6 beams and 30mm resolution.
Manufacturer part number: 1K3-098
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Series = 1K3
Beam Resolution = 30mm
Component Type = Receiver, Sender
Safety Type = 3
SIL IEC 61508 = 2
PL EN ISO 13849-1 = d
Number of Beams = 6
Protective Height = 180mm
Minimum Scanning Distance = 0.5m
Maximum Scanning Distance = 5m
Maximum Response Time = 40 ms
Length = 41mm
Features = EDMmm
EN61496-1 Type 2, and IEC 61496-2-Type 2 and safety classification EN954-1 Category 3. These devices must be installed and used in accordance with the installation and operating instructions supplied with each product. 1K3 Series, Type 2, Hand Protection. Typical light curtain applications include: automated warehouses, robots, packaging machines, injection moulding machines, textile machinery, electronic component assembly lines, transfer lines, bottling and filling machines, process machinery and special purpose equipment. Simple installation and alignment with diagnostic indicators No range setting required Continuously self-testing system, no 'test' input required Dual channel, fail-safe electronic outputs All units come with transmitter and receiver, and 2 x 5m connecting cables Waterproof enclosures
