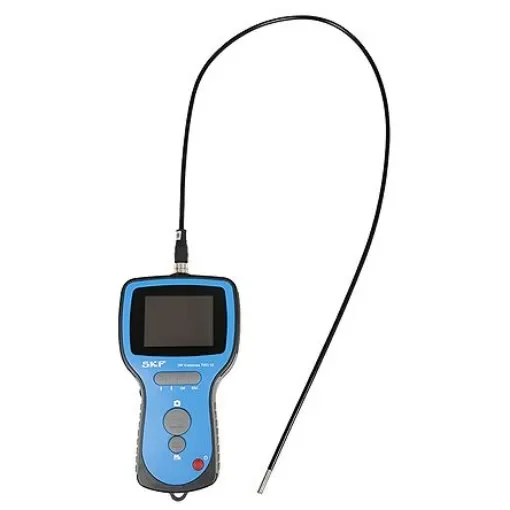

SKF TKES 10F Endoscope, 1000mm Probe Length, 640 x 480pixels Resolution, LED Illumination

Probe Length = 1000mm
Resolution = 640 x 480pixels
Field of View = 67°
Illumination Type = LED
Minimum Focus Distance = 15mm
Maximum Bending Radius = Minimum of 50mm

SKF Endoscope, 1m Probe Length, LED Illumination - TKES10FThis endoscope from SKF is a compact tool for the internal inspection of your machinery. Feed the high-resolution camera, which is mounted on a one-metre flexible insertion tube, into hard-to-reach places to check for wear or malfunctions. LED lights mean even dark areas can be checked. Pictures are displayed on the device’s 3.5-inch wide-angle screen, or they can be relayed to a monitor via the TV-out adapter. Up to 50,000 photos or 120 minutes of video can be stored on the instrument or transferred via the SD card to a PC for later viewing. Powerful magnets on the unit allow for hands-free operation.• Narrow insertion tube tip of 5.8 mm • Four adjustable white LED lights • 67° field of view • 45° side-view adapter gives a 90° view • Rechargeable 3.7 V lithium-polymer battery • Four hours operation after two hours charge • Power adapter, USB, video cable and SD card included • Operating temperature range of -20°C to +60°CApplication Information• Manufacturing • Automotive industries • Production linesHow is the endoscope supplied?The endoscope comes in a durable carry case and is supplied complete with cables, a mains charger and a cleaning kit.
