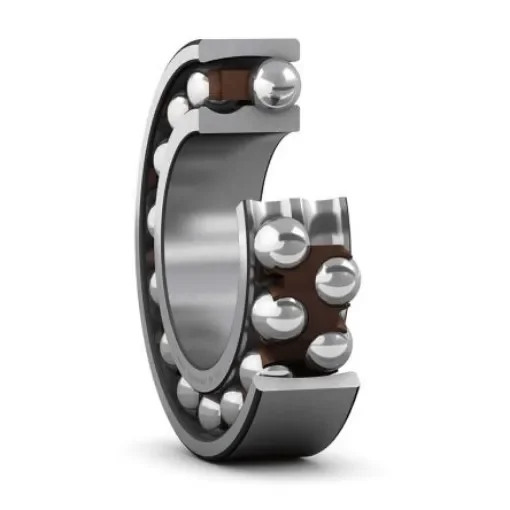

SKF 2207 EKTN9 Self Aligning Ball Bearing- Open Type 35mm I.D, 72mm O.D
High-performance SKF self-aligning ball bearing designed for optimal load handling and misalignment tolerance.
Manufacturer part number: 2207 EKTN9
GTIN: 7316576624070
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 35mm
Outside Diameter = 72mm
Race Width = 23mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Non-metallic
Number of Rows = 2
Static Load Rating = 8.8kN
Dynamic Load Rating = 30.2kN
Bore Type = Tapered
Bearing Series = 2 Light
Partial Bearing Code = 2207
The SKF self-aligning ball bearings with two rows of balls having bore diameter 35mm and outside diameter 72mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.Tapered type bore Steel bearing
