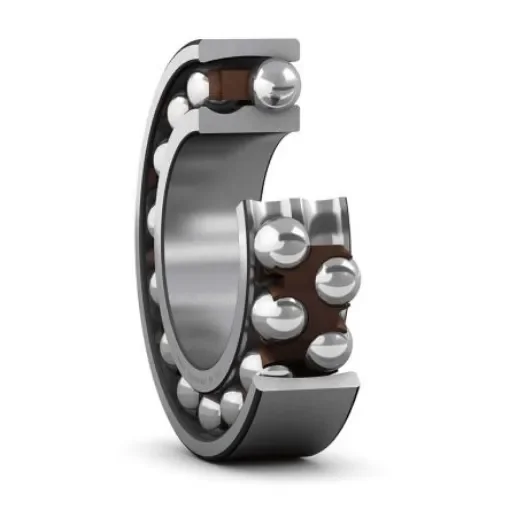

SKF 2206 ETN9 Self Aligning Ball Bearing- Open Type 30mm I.D, 62mm O.D
Durable SKF self-aligning ball bearing with 30mm I.D for reliable performance.
Manufacturer part number: 2206 ETN9
GTIN: 7316576620522
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 30mm
Outside Diameter = 62mm
Race Width = 20mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Non-metallic
Number of Rows = 2
Static Load Rating = 6.7kN
Dynamic Load Rating = 23.8kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 2206
The SKF self-aligning ball bearings with two rows of balls having bore diameter 30mm and outside diameter 62mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.Cylindrical type bore Steel bearing
