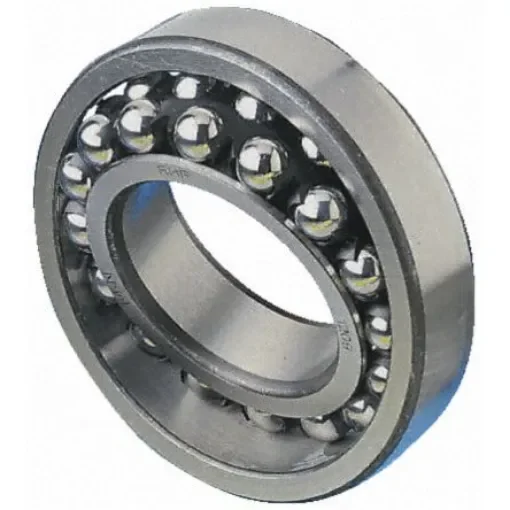

SKF 2204 E-2RS1TN9 Self Aligning Ball Bearing- Both Sides Sealed 20mm I.D, 47mm O.D

Inside Diameter = 20mm
Outside Diameter = 47mm
Race Width = 18mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Both Sides Sealed
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Non-metallic
Number of Rows = 2
Static Load Rating = 3.4kN
Dynamic Load Rating = 12.7kN
Clearance Code = CN
Bearing Series = 2 Light
Model Number p = 2204E

instruction leaflet. Double Row Self - Aligning. Radial Self-Aligning Ball Bearing. These bearings are designed to accommodate shaft deflection when running and will also cope with initial misalignment. The double row bearing is designed primarily to withstand radial load with a small capacity for axial load. Also available with ring seals (rubbing seals) made from oil-resistant, non-wearing synthetic rubber with steel reinforcement on both sides (Type 2RS1). Open Bearings. ETN9 and KTN9 are Open self-aligning bearings without a seal available in parallel or Taper bores. Sealed bearings. 2RS1TN9 are sealed (NBR) bearings packed with grease with a lithium thickener suitable for temperatures from -40°C to + 100°C. They are sealed for life, so should not be heated above 80°C before mounting and must not be washed out under any circumstances. TN suffix denotes polyamide cage
