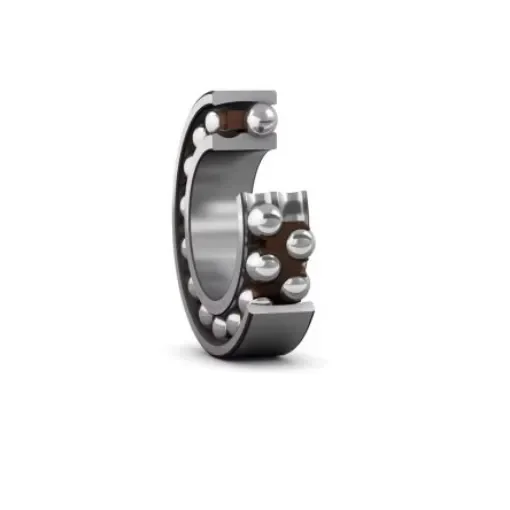

SKF 1306ETN9 Self Aligning Ball Bearing- Open Type 30mm I.D, 72mm O.D
High-performance SKF self-aligning ball bearing designed for flexibility and load capacity.
Manufacturer part number: 1306ETN9
GTIN: 7316574194759
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 30mm
Outside Diameter = 72mm
Race Width = 19mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Non-metallic
Number of Rows = 2
Static Load Rating = 6.8kN
Dynamic Load Rating = 22.5kN
Bore Type = Parallel
Bearing Series = 3 Medium
Partial Bearing Code = 1306
instruction leaflet. Double Row Self - Aligning. Radial Self-Aligning Ball Bearing. These bearings are designed to accommodate shaft deflection when running and will also cope with initial misalignment. The double row bearing is designed primarily to withstand radial load with a small capacity for axial load. Also available with ring seals (rubbing seals) made from oil-resistant, non-wearing synthetic rubber with steel reinforcement on both sides (Type 2RS1). Open Bearings. ETN9 and KTN9 are Open self-aligning bearings without a seal available in parallel or Taper bores. Sealed bearings. 2RS1TN9 are sealed (NBR) bearings packed with grease with a lithium thickener suitable for temperatures from -40°C to + 100°C. They are sealed for life, so should not be heated above 80°C before mounting and must not be washed out under any circumstances. TN suffix denotes polyamide cage
