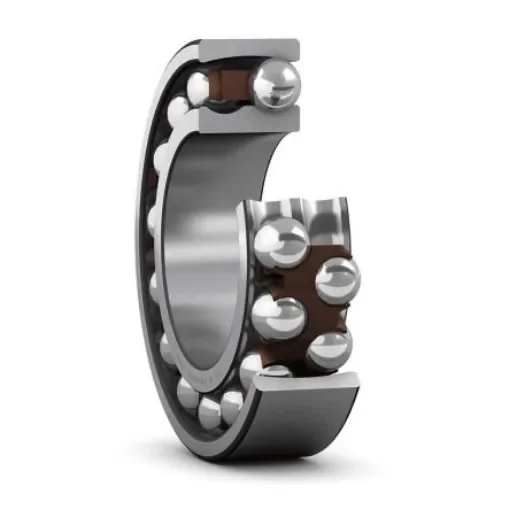

SKF 1305 ETN9 Self Aligning Ball Bearing- Open Type 25mm I.D, 62mm O.D
High-performance SKF self-aligning ball bearing with 25mm I.D and 62mm O.D for optimal shaft alignment.
Manufacturer part number: 1305 ETN9
GTIN: 7316576626821
Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 25mm
Outside Diameter = 62mm
Race Width = 17mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Non-metallic
Number of Rows = 2
Static Load Rating = 5.4kN
Dynamic Load Rating = 19kN
Bore Type = Parallel
Bearing Series = 3 Medium
Partial Bearing Code = 1305
The SKF self-aligning ball bearings with two rows of balls having bore diameter 25mm and outside diameter 62mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.Cylindrical type bore Steel bearing
