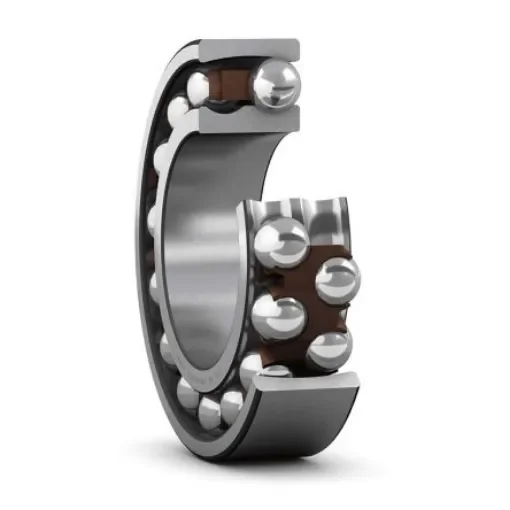

SKF 129 TN9 Self Aligning Ball Bearing- Open Type 9mm I.D, 26mm O.D

Inside Diameter = 9mm
Outside Diameter = 26mm
Race Width = 8mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Non-metallic
Number of Rows = 2
Static Load Rating = 815kN
Dynamic Load Rating = 3.9kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 129

The SKF self-aligning ball bearings with two rows of balls having bore diameter 9mm and outside diameter 26mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.Cylindrical type bore Steel bearing
