SKF 126 TN9 Self Aligning Ball Bearing- Open Type 6mm I.D, 19mm O.D
High-performance SKF self-aligning ball bearing designed for optimal load handling and misalignment tolerance.
Manufacturer part number: 126 TN9
GTIN: 7316570017502
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Race Width = 6mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Non-metallic
Number of Rows = 2
Static Load Rating = 0.48kN
Dynamic Load Rating = 2.47kN
Clearance Code = CN
Bearing Series = 2 Light
Model Number p = 126

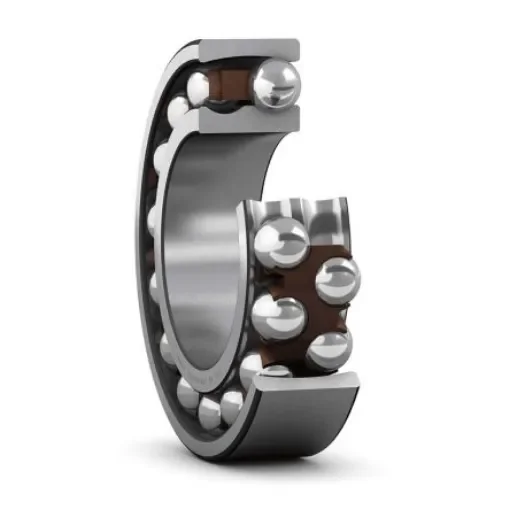

The SKF self-aligning ball bearings with two rows of balls having bore diameter 6mm and outside diameter 19mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.Cylindrical type bore Steel bearing
