SKF 1222 K Self Aligning Ball Bearing- Open Type 110mm I.D, 200mm O.D
Durable SKF self-aligning ball bearing with high load capacity and open type design.
Manufacturer part number: 1222 K
GTIN: 7316577077684
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 110mm
Outside Diameter = 200mm
Race Width = 38mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Sheet Metal
Number of Rows = 2
Static Load Rating = 39kN
Dynamic Load Rating = 88.4kN
Bore Type = Tapered
Bearing Series = 2 Light
Partial Bearing Code = 1222

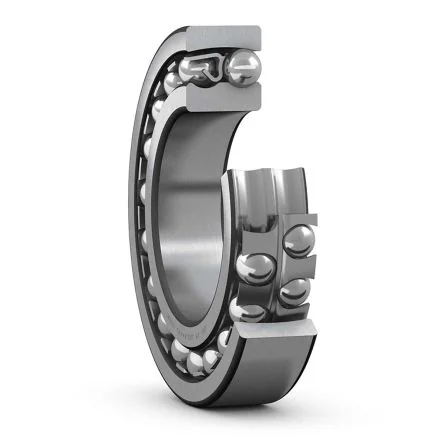

The SKF self-aligning ball bearings with two rows of balls having bore diameter 110mm and outside diameter 200mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.Tapered type bore Steel bearing
