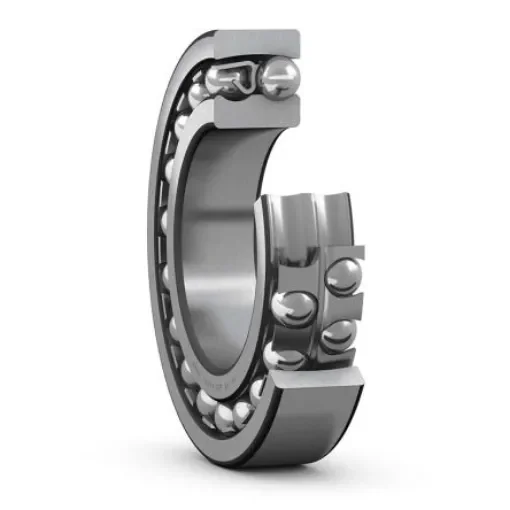

SKF 1219 Self Aligning Ball Bearing- Open Type 95mm I.D, 170mm O.D
High-performance SKF self-aligning ball bearing designed for optimal load handling and misalignment tolerance.
Manufacturer part number: 1219
GTIN: 7316576605444
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 95mm
Outside Diameter = 170mm
Race Width = 32mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Sheet Metal
Number of Rows = 2
Static Load Rating = 27kN
Dynamic Load Rating = 63.7kN
Bore Type = Parallel
Bearing Series = 2 Light
Partial Bearing Code = 1219
The SKF self-aligning ball bearings with two rows of balls having bore diameter 95mm and outside diameter 170mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.Cylindrical type bore Steel bearing
