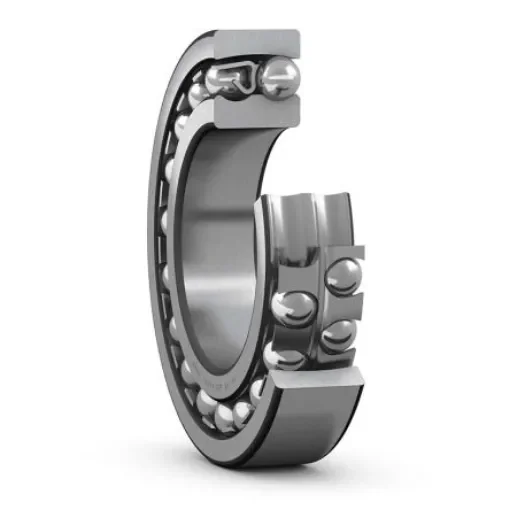

SKF 1218 K/C3 Self Aligning Ball Bearing- Open Type 90mm I.D, 160mm O.D

Inside Diameter = 90mm
Outside Diameter = 160mm
Race Width = 30mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = C3
Material = Steel
Ball Material = Steel
Cage Material = Sheet Metal
Number of Rows = 2
Static Load Rating = 23.6kN
Dynamic Load Rating = 57.2kN
Bore Type = Tapered
Bearing Series = 2 Light
Partial Bearing Code = 1218

The SKF self-aligning ball bearings with two rows of balls having bore diameter 90mm and outside diameter 160mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.Tapered type bore Steel bearing
