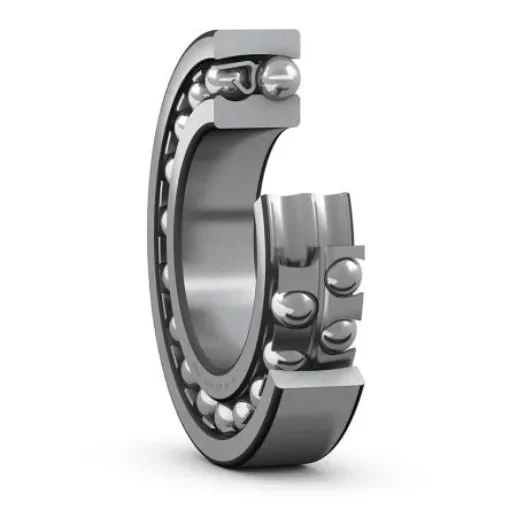

SKF 1217 K Self Aligning Ball Bearing- Open Type 85mm I.D, 150mm O.D
High-performance SKF self-aligning ball bearing designed for optimal load handling and misalignment tolerance.
Manufacturer part number: 1217 K
GTIN: 7316577000026
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Inside Diameter = 85mm
Outside Diameter = 150mm
Race Width = 28mm
Ball Bearing Type = Self Aligning Ball Bearing
Sealing Arrangement = Open Type
Bearing Clearance = CN
Material = Steel
Ball Material = Steel
Cage Material = Sheet Metal
Number of Rows = 2
Static Load Rating = 20.8kN
Dynamic Load Rating = 48.8kN
Bore Type = Tapered
Bearing Series = 2 Light
Partial Bearing Code = 1217
The SKF self-aligning ball bearings with two rows of balls having bore diameter 85mm and outside diameter 150mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.Tapered type bore Steel bearing
