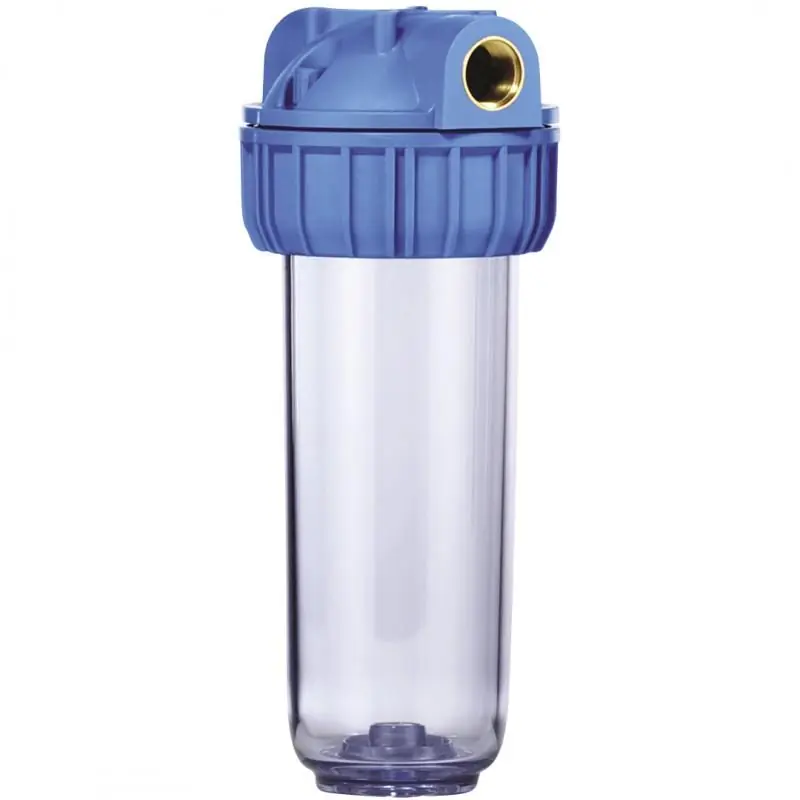

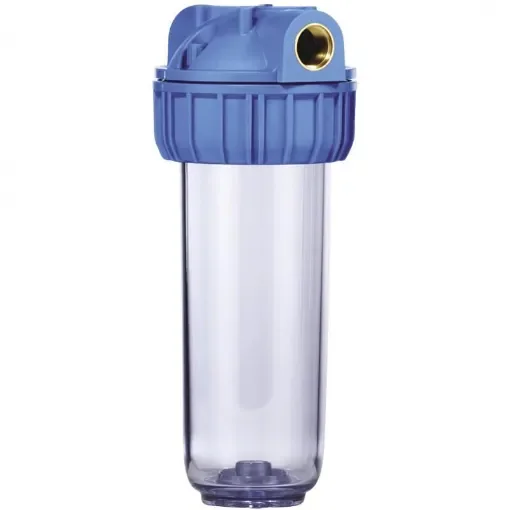

Single Sx 10' Filter Station

The Single Sx 10' Filter Station is a compact and efficient filtration system designed for easy installation and reliable performance.

• Cartridge Compatibility: Accommodates a single 10-inch (250 mm) filter cartridge, suitable for various filtration needs.
• Instant Mounting: Designed for quick and straightforward installation, compatible with BX or SX mounting systems.
• Drinking Water Compatibility: Safe for use with drinking water, ensuring clean and purified water output.

Technical Specifications:

• Maximum Temperature: 45°C (113°F)
• Maximum Operating Pressure: 8 bars (116 psi)
• Connection Type: Female connection with brass inserts for secure and leak-proof fittings.
• Head Width: 133 mm

Materials:

• Housing: Constructed with durable materials to ensure longevity and resistance to corrosion.
• Cartridge: Compatible with standard 10-inch filter cartridges, such as the PPX 10 SX 1 MCR sediment filter made of polypropylene fleece.

Dimensions:

• Height: Approximately 250 mm
• Diameter: Approximately 61 mm
• Head Opening: 28 mm

Compatibility Information:

• Mounting Systems: Compatible with BX or SX mounting systems for versatile installation options.
• Filter Cartridges: Compatible with standard 10-inch filter cartridges, such as the PPX 10 SX 1 MCR sediment filter.
