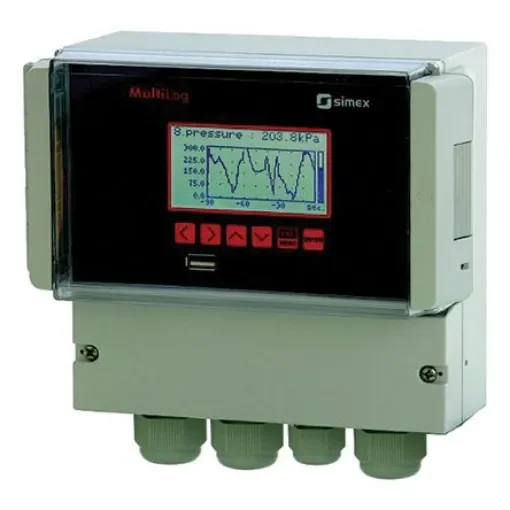

Simex SRD N16A, 8 Input Channels, 2 Output Channels, Graphical Chart Recorder Measures Current - SRD-N16A-8121-1-3-0B1

Chart Type = Graphical
Number of Inputs = 8
Parameter Measured = Current
Number of Outputs = 2mA
Maximum Operating Voltage = 35 V ac, 50 V ac/dc
Maximum Voltage Measurement = 10V
Model Number p = SRD N16A
IP Rating = IP65
Temperature Measurement Resolution = 0.1°C
Length = 166mm

SRD-N16A MultiLog Chart Recorder. The MultiLog SRD-N16 is a chart recorder designed to record and display current values and present technological parameters in the form of charts. The recorder is equipped with 8 current inputs. Configuration of the chart recorder is extremely easy due to the multi-language menu assisted with full text descriptions. Individual alphanumeric description text of each of the recorded channels is also available. • 128 x 64 points graphic, LCD display (colour: amber) • Wall mounting • 8 Current inputs • 2 Relay outputs • USB host port for flash data storage • 8 MB internal memory capacity • RS485/Modbus RTU communication port • Free configuration and recording software • IP65 protected casing
