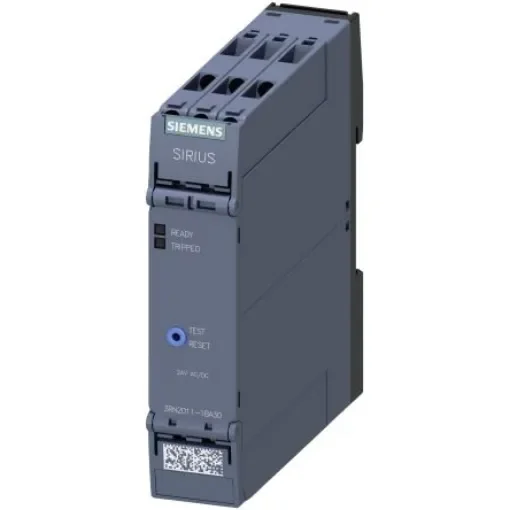

Siemens Thermistor Motor Protection Monitoring Relay, DPDT, DIN Rail - 3RN2011-1BA30
Ensure motor safety with Siemens' thermistor relay for effective temperature monitoring.
Manufacturer part number: 3RN2011-1BA30
GTIN: 4047621006680
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Monitoring Application = Thermistor motor temperature protection
Contact Configuration = DPDT
Voltage Sensitivity = Motor Voltage
Mounting Type = DIN Rail
Series = 3RN2
Dimensions = 90 x 22.5 x 100mm
Thermistor motor protection relay Standard evaluation unit 22.5 mm enclosure screw terminal 2 change-over contacts US = 24 V AC/DC Manul/Remote-Reset with ATEX approval 2 LEDs (READY/TRIPPED) galvanic isolation Test/reset button Wire break monitoring Short circuit monitoring
