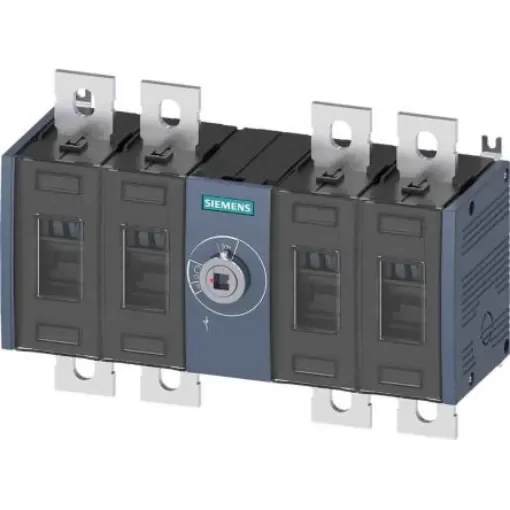

Siemens Switch Disconnector, 4 Pole, 200A Max Current - 3KD3640-0PE20-0
Ensure electrical safety with Siemens' 4 pole switch disconnector, rated for 200A maximum current.
Manufacturer part number: 3KD3640-0PE20-0
GTIN: 4001869472645
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Number of Poles = 4
Maximum Current = 200A
Mounting Type = Screw Mount
Normal State Configuration = 6NO/6NC
Range = SENTRON
Series = 3KD
Auxiliary Contacts Available = Yes
Maximum Operating Temperature = +70°C
The Siemens SENTRON switch disconnector has current ratings of 200 A with four number of poles. It has front operating mechanism with position of the switch operating mechanism at centre. It offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.Protection class IP20 Isolation voltage 1000 V Ambient temperature -25 °C to +70 °C Surge voltage resistance 12 kV Mechanical life 10,000 Electrical life 1000 Design of the electrical connection flat connection Size of the switch disconnector 3
