Siemens 3 Pole DIN Rail Isolator Switch - 32A Maximum Current, 12kW Power Rating, IP65 - 3LD2244-0TK53

Number of Poles = 3
Maximum Current = 32A
Mounting Type = DIN Rail
IP Rating = IP65
Power Rating = 12kW
Voltage Rating = 690V
Handle Colour = Red
Auxiliary Contacts Available = No
Enclosed/Not Enclosed = Enclosed
Switch Rating = 32A
Length = 84mm
Width = 67mm
Depth = 451.5mm
Maximum Operating Temperature = +55°C

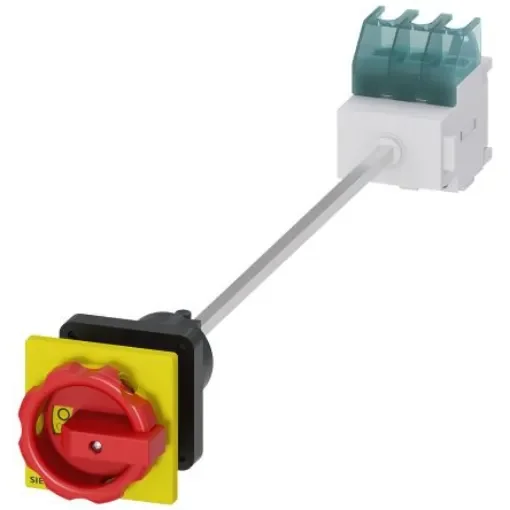

The Siemens SENTRON series 3LD switch disconnector has rated continuous current of 32A and type of switch is floor mounting with door coupling. The switches for floor mounting are snapped onto 35 mm standard mounting rails according to EN 60715 or screw-mounted on mounting panels. The actuators are connected to the lower section of the switch through a door coupling, which can be released in its zero position, and a 300 mm long switch shaft.It consist three poles Fixed mounting Device type
