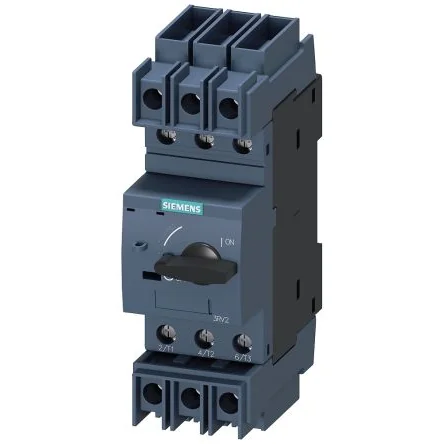

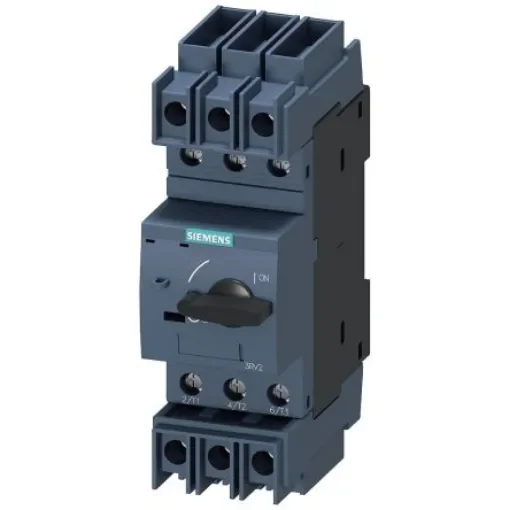

Siemens 22 A SIRIUS 3RV Motor Protection Circuit Breaker, 230 V - 3RV2721-4CD10
Ensure reliable motor protection with the Siemens SIRIUS 3RV 22A Circuit Breaker, designed for efficiency and safety.
Manufacturer part number: 3RV2721-4CD10
GTIN: 4011209767690
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Current Rating = 22 A
Range = SIRIUS 3RV
Motor Protection Component = Basic Unit
Supply Voltage = 230 V
Motor Protection System = 3RV27
Number of Inputs = 3
Sensing Type = Current
Better World Product = Yes
The Siemens Circuit breaker size S0 for system protection with approval circuit breaker UL 489, CSA C22.2 No.5-02 A-release 22 A N-release 286 A screw terminal Standard switching capacity Circuit breaker SIRIUS 3RV2 For system protection according to UL 489/CSA C22.2 No. 5 for the short-circuit protection of systems and loads in plants configured in accordance with UL. Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks.Simple, efficient and always up to date - SIRIUS modular system The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signalling switches etc is standardized for all sizes
