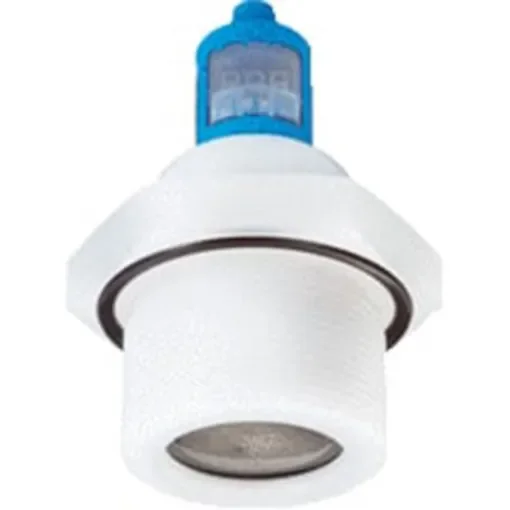

SICK UP56 Series Ultrasonic Level Sensor with display Ultrasonic Level Sensor, 0-10, 4 to 20 mA, PNP Output, G2 Thread, - UP56-214178

Device Type = Ultrasonic Level Sensor with display
Mounting Type = G2 Thread
Switch Output = 0-10, 4 to 20 mA, PNP
Body Material = PBT, PVDF, TPU
Minimum Operating Temperature = -25°C
Maximum Operating Temperature = +70°C
Maximum DC Voltage = 30V
Maximum Current = 20 mA
Maximum Pressure = 6bar
Measurement Range = 3.4m
Series = UP56
Standards Met = CE Certified

The product family UP56 of ultrasonic level sensors is the ideal solution for demanding applications. The teflon-protected transducer handles overpres-sure up to 6 bar (87 psi) and is resistant against numerous difficult fluids. Wetted parts can be chosen either as stainless steel or PvDF, thus making the UP56 the perfect solution for measurement in aggressive, viscous, or abrasive liquids, or bulk solids.Non-contact measurement up to 3.4 m operating distance / 8.0 m scanning distance limit Pressure resistant up to 6 bar Converter protected by PvDF cover for increased resistance 3-in-1: Continuous measurement, switching signal, and display Analog output can be switched 4 mA .. 20 mA and 0 V .. 10 V Process connector thread G 1 and G 2 Simple operation, also via Connect+
