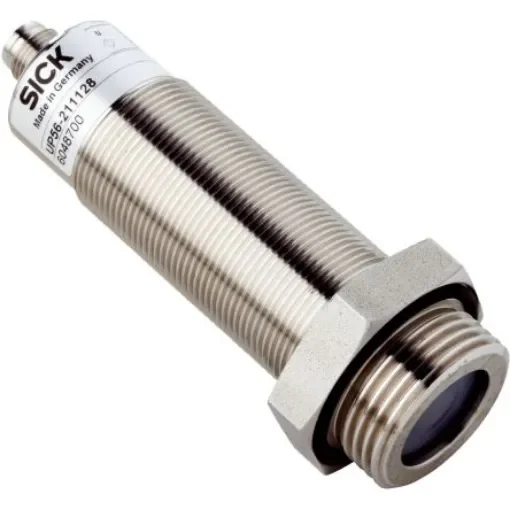

SICK UP56 Series Ultrasonic Level Sensor Ultrasonic Level Sensor, G1 Thread, Vertical, Stainless Steel Body - UP56-213128

OverviewAt a glanceNon-contact measurement up to 3.4 m operating distance / 8.0 m scanning distance limit Pressure resistant up to 6 bar Converter protected by PVDF cover for increased resistance 3-in-1: Continuous measurement, switching signal, and display Analog output can be switched 4 mA .. 20 mA and 0 V .. 10 V Process connector thread G 1 and G 2 IP67 enclosure rating Simple operation, also via Connect+Your BenefitNon-contact measurement in pressurized containers – no wear over time Easy to set parameters, saving time Flexible measurement system for different container sizes – standardization and stock reduction One product for point level and continuous applications, reduces the number of sensors requiredThe product family UP56 of ultrasonic level sensors is the ideal solution for demanding applications. The teflon-protected transducer handles overpressure up to 6 bar (87 psi) and is resistant against numerous difficult fluids. Wetted parts can be chosen either as stainless steel or PVDF, thus making the UP56 the perfect solution for measurement in aggressive, viscous, or abrasive liquids, or bulk solids. By combining two output signals in one device, new cost-effective solutions can be created for measurement and integration into the system. With two switching outputs, the UP56 can measure dry running and overflow in one device. Combining analog and a switching output enables continuous level measurement with a separate overflow signal. Parameters are easy to set via an integrated display, PC or the connect+ adapter.ApplicationsLevel measurement in the material container Toner fill level measurement Checking presence and fill level in the singulation system Level measurement in the material container Filling level measurement Level measurement during material handling Clogging in a compartment hopper Dust silo filling level at a dust conveying system in the off-gas systemNoteProduct details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
