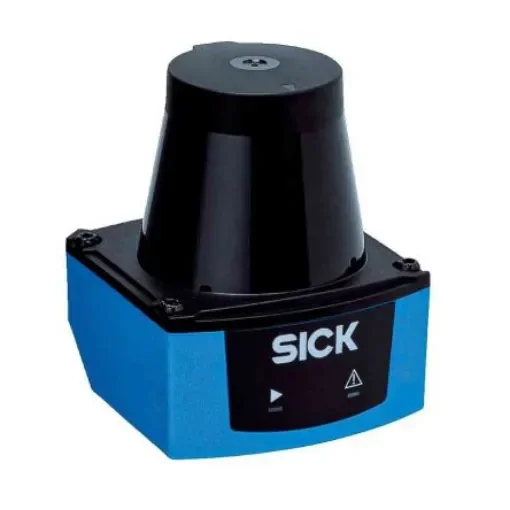

SICK TiM1xx Series TiM Laser Scanner, 3m Max Range - TIM100-3010200 / 1077524

Sensor for area monitoring: small, simple, cost-effective TiM1xx is a small, simple, cost-effective laser scanner for a wide variety of area-monitoring applications. It is the starter model of the 2D LiDAR sensors from SICK and opens up new application possibilities with its compact design. TiM1xx is the ideal sensor for challenging presence-monitoring applications. With the TiM1xx, detection fields of up to 15.7 m² are easy to configure via software. The integrated IO-Link interface makes sure that commissioning can be performed as quickly as possible and enables flexibility during application as well as simple parameter cloning.At a glance: • Small, simple, and cost-effective sensor for area monitoring • Monitoring of an area of up to 15.7 m² • Low weight of just 90 g • Field evaluation using integrated software algorithms • Low power consumption of typically 2.2 W • Configuration and cloning using IO-Link • Industrial designApplications: • Presence monitoring in warehouses • Overrun and height detection • Picking applications • Collision avoidance for automated guided vehicles and machines • Monitoring of doors and gates
