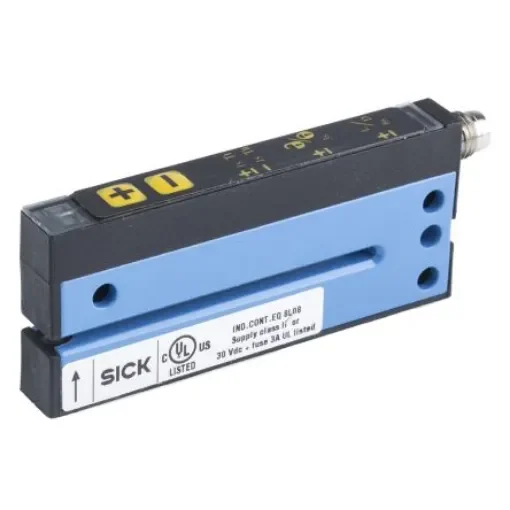

SICK Through Beam Photoelectric Sensor, Fork Sensor, 2 mm Detection Range - WF2-60B416
Experience precise detection with the SICK Through Beam Fork Sensor, ideal for various applications.
Manufacturer part number: WF2-60B416
GTIN: 4047084160943
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Sensor Style = Fork
Detection Type = Through Beam
Detection Range = 2 mm
Output Type = PNP
Electrical Connection = M8 4 Pin Connector
Maximum DC Voltage = 30V
Light Source = Infrared
IP Rating = IP65
Maximum Current = 100 mA
Response Time = 100 µs
Series = WF°C
WF3 and WF5 Teach-in 3 or 5mm Gap. Mounting holes 4.2 diameter. Aluminium housing protected to IP65 LED indication Operating temperature range –20 to +60 deg°C Standard and fine setting using teach-in function Teach-in via button or remote wire Light/dark switching Short circuit protection and interference pulse suppression 10% ripple M8, four-pin plug-in connector Dimensions (mm):12 x 80mm WD, 37.5 H(3mm), 39.5 H(5mm)
