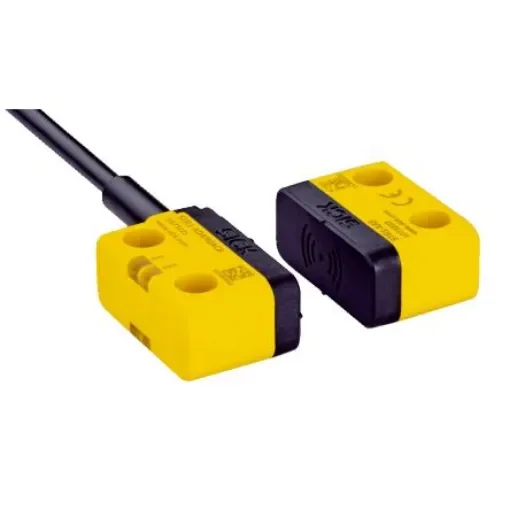

SICK STR1 Series RFID Non-Contact Safety Switch, 24V dc, Vistal Housing, 2NO, M12 - STR1-SASU0AC8
The SICK STR1 RFID Safety Switch provides high manipulation protection with flexible mounting options and monitored outputs.
Manufacturer part number: STR1-SASU0AC8
GTIN: 4047084384783
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Supply Voltage = 24V dc
Safety Contacts = 2NO
Housing Material = Vistal
Connection Type = M12
Actuator Type = Standard Coded
Auxiliary Contacts = 1
Sensor Principle = RFID
Actuator Included = Yes
Series = STR1
IP Rating = IP67
Supply Current = 50mA
Length = 18mm
the Str1 transponder safety switch has monitored semiconductor outputs (oSSds) and can be safely connected either individually or in series. It can be used for applications where a high level of manipulation protection is required. the Str1 is available with three codes. universally coded sensors accept all actuators. an actuator must be taught into both the uniquely coded and permanently coded variants, this is the only actuator that the Str1 then accepts. the sensor has three active sensor surfaces. the actuator comes in three different sizes. this allows the Str1 to offer maximum mounting flexibility.response range of up to 14 mm Small housing with flexible mounting options Sensor activation possible from three sides three different actuators available
