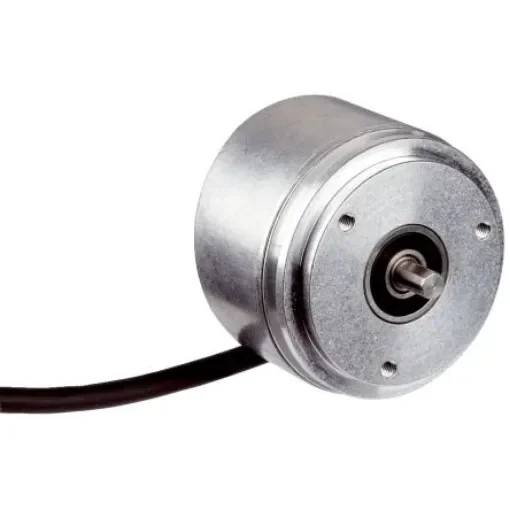

SICK DFS60 Series Incremental Incremental Encoder, 10000 ppr, HTL, TTL Signal, 6mm Shaft - DFS60B-S1PM10000

OverviewAt a glanceShort installation depth High resolution of up to 16 bits Optional programming: Output voltage, zero pulse position, zero impulse width, pulse number and counting direction Connection: Radial or axial cable outlet, M23 or M12 male connector, axial or radial. Electrical interfaces: 5 V & 24 V TTL/RS-422, 24 V HTL/push pull, 5 V sin/cos 1 Vss Mechanical interfaces: Face mount flange or servo flange, blind hollow shaft or through hollow shaft Remote zero set possible Conveyor belt operation on dust conveying system Fan operation (RPM) at impeller axis in the off-gas system Controlling the speed of an object and conveyor during the rolling process Synchronization of drive motors in the hot rolling process Presence detection and positioning for the pusher into a reheating furnac Width and diameter control of coils during winding Monitoring belt operation in carbon and sinter supply Monitoring the operation of the sinter conveyor in the sinter plantYour BenefitReduced storage costs and downtime due to customer-specific programming Variety of different mechanical and electrical interfaces enable the encoder to be optimally adjusted to fit the installation situation Excellent concentricity even at high speeds High resolution of up to 16 bits ensures precise measurements Permanent and safe operation due to a high enclosure rating, temperature resistance and a long bearing lifetime Programmability via the PGT-08 programming software and the PGT-10-Pro display programming tool allow the encoder to be adapted flexibly and quickly according to customer needs Programmable zero pulse position simplifies installation Calculation of belt speed and running direction Monitoring train loading and unloading operations Exact positioning in the printing process Monitoring of the sheet coil uncoiling process Loop control: loop and speed measurement Positioning of the oxygen cutting torch during continuous castingThe DFS60 is a high-resolution incremental encoder with a diameter of 60mm. It offers a wide variety of mechanical and electric interfaces and can also be programmed by the customer if required. Programming of the output signal and zero pulse is a unique feature for the market. The high enclosure rating, wide temperature range and large ball bearing distance ensure extreme robustness, making the DFS60 the ideal encoder for industrial applications in harsh environmentsApplicationsApplications in factory and logistics automation for measurement of position, speed and distance, for example in print machines, textile machines, wood processing, packaging machine Weld detection and measurement of the sheet removal speed Detecting printed circuit boards Measurement of the vehicle speed Synchronizing the camera system Determination of the speed of a belt Speed detection for correct labeling Controlling the print head on ink jet printers Synchronization of machine processes Sheet coil uncoiling Weld detection and measurement of the sheet removal speed Sheet coil uncoiling Safe drive monitoring Measurement of the log volume Monitoring the feed speed Synchronizing the package ejection Plausibility check Monitoring the conveyor belt speed Board detection and measurement Speed measuring Measuring the conveying speed of a belt conveyor Quality and position monitoring on conveyor belts 3D quality testing for the highest demands Avoid collisions with safety scanning
