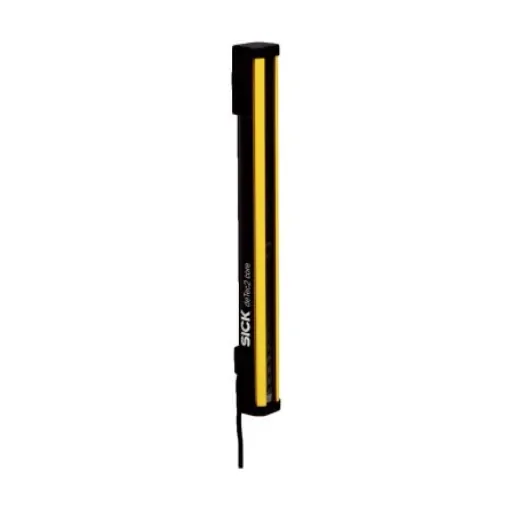

SICK deTec2 Core Series Light Curtain Receiver, 30mm Resolution - C2C-EA06030A10000
The SICK deTec2 Core Light Curtain Receiver ensures safety with a 30mm resolution and robust design for harsh environments.
Manufacturer part number: C2C-EA06030A10000
GTIN: 4047084319617
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Series = deTec2 Core
Beam Resolution = 30mm
Component Type = Receiver
Safety Type = 2
SIL IEC 61508 = 1
PL EN ISO 13849-1 = c
Protective Height = 600mm
Minimum Scanning Distance = 0m
Maximum Scanning Distance = 12m
Maximum Response Time = 10 ms
Length = 613mm
Dimensions = 613 x 34 x 30.7 mmmm
Type 2 IEC 61496, SIL1 IEC 61508, PL c EN ISO 13849. Sick deTec2 Core Safety Light Curtain. The deTec2 Core from Sick has an innovative bracket system, no blind zones and an increased protective field height range of 300 mm to 2100 mm. The rear of the safety light curtain has a half rounded contour which allows the brackets to be positioned in any location on the housing. The integrated LED displays, diagnostic functions and automatic distance measurements of the deTec2 Core reduce costs and save time during installation. It has an IP65 / IP67 enclosure rating and a minimum operating temperature of -30°C making it suitable for harsh conditions and low temperature environments. Features ; Benefits. Simple assembly with innovative mounting No blind zones Integrated LED display Resolution of 30 mm Protective field height of 300 mm to 2100 mm Automatic calibration on the protective field width up to 10 m range Ambient operating temperature of -30°C to +55°C Enclosure rating IP65 ; IP67 Flexi Loop-compatible M12 male connector. Applications. The deTec2 Core safety light curtain is ideal for machine building applications such as handling ; assembly, food ; beverages and packaging machines.
